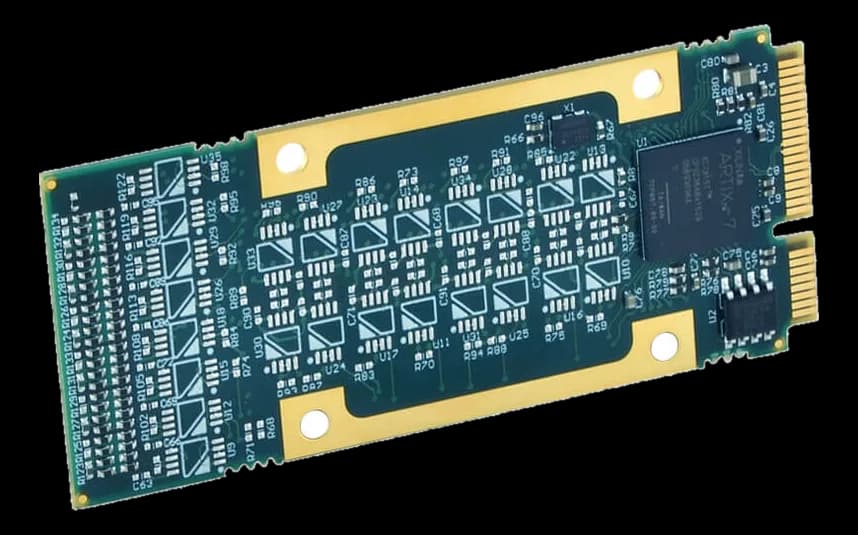

AP482AcroPack PCI Express module with ten 32-bit counter/timers on Artix-7 FPGA
- Manufacturer
- Configurations
- 1 available configurations
AP482 belongs to the AcroPack line, which carries over the functions and memory map of Industry Pack modules onto a PCI Express interface: the module mounts on PCIe, VPX and XMC carriers and coexists with other AcroPack modules in the same system. The declared positioning is COTS — military and defense, automation, aerospace, scientific and development laboratories — with Linux, Windows and VxWorks support.
Each counter operates in event counting, frequency measurement, period and pulse width measurement, quadrature position, PWM output, watchdog timer and one-shot pulse. Synchronization comes from an internal timer, gating, an external digital trigger or software, and configuration is handled through a single register rather than a programming sequence.
Available under the part number AP482E-LF, the TTL counter version.
At a glance
- 62.5 MHz time base clock
- Xilinx Artix-7 FPGA
- Fifty signals available as field I/O
- RoHS compliant
Technical specifications
| FPGA / processing | Xilinx® Artix-7 |
|---|
| Connectors | A down facing 100 pin Samtec connector will mate with the carrier card. Fifty of these signals are available as field I/O signals. |
|---|
| Counter | Ten 32-bit multi-function counters |
|---|---|
| Trigger modes | SoftwareExternal digital triggerGatedInternal timer |
| Architecture standard | AcroPackPCI Express |
|---|---|
| Board function | I/OClock / Timing |
| Power input | 3.3V DC ± 5. |
|---|
| Dimensions | the same as mPCIe board of 30mm · 70mm long · 3.25 × 1.25 × 1 in |
|---|---|
| Rugged / conformal coating | Wide temperature range |
| Cooling | Conduction-cooled |
|---|---|
| Operating temperature | -40–85 °C-40–70 °C |
| Storage temperature | -55–150 °C |
| Certifications | RoHS |
|---|
| Operating systems | WindowsVxWorksLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
