AP-X24Industrial monitor with DC input at a selectable voltage
- Manufacturer
- Configurations
- 6 available configurations

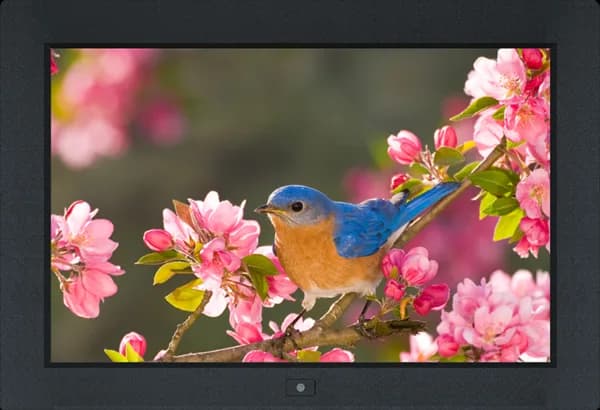

AP-X24 is an Austin Hughes industrial monitor intended for integration machine-side, in panels and in control stations.
The axis that distinguishes it is DC power input: the input is provided for nominal voltages of 12, 24, 48 or 125 V, to be specified when choosing the version.
The configurations of the family vary among other things by mounting, declared panel or vesa, and by power input, with auto-sensing 100 to 240VAC, 50 / 60Hz versions and 24V, 48V, 110 ~ 125VDC options; an example part number is AP-X24_TRB.
At a glance
- Display size: 24 ″
- Resolution: 1920x1200 WUXGA
- Brightness: Up to 399 standard cd/m²
- Power input: DC 12/24/48/125 V (nominali a scelta)
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | Up to 399 standard cd/m² |
| Aspect ratio | 16:10 |
| Power input | DC 12/24/48/125 V (nominali a scelta) |
|---|
| MTBF | 30000 h |
|---|
| Certifications | UKCAWEEE (2012/19/UE)CEFCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Power input | Certifications |
|---|---|---|
| AP-X24_TRB | DC 12/24/48/125 V (nominali a scelta) | RoHSCEFCCUKCAWEEE (2012/19/UE) |
| AP-X24/DC12 | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional: · 24V, 48V, 110 ~ 125VDC power | CEFCC |
| AP-X24/DC125 | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional: · 24V, 48V, 110 ~ 125VDC power | FCCCE |
| AP-X24/DC24 | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional: · 24V, 48V, 110 ~ 125VDC power | CEFCC |
| AP-X24/DC48 | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional: · 24V, 48V, 110 ~ 125VDC power | FCCCE |
| AP-X24/TRB | — | — |
