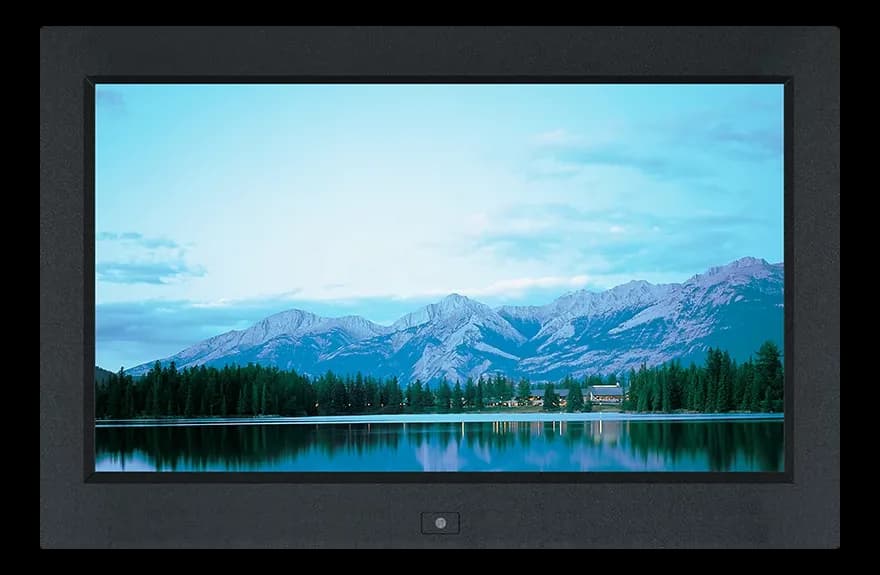

AP-F1515.6" desktop industrial monitor with anti-glare LED panel
- Manufacturer
- Configurations
- 13 available configurations
AP-F15 is an Austin Hughes industrial monitor for operator stations and workbenches, designed for daily use in production environments, in the control room or at the test bench.
Operation is specified between 0~55 °C with a weight of 4.7 kg; the frame is aluminium with a Dark finish and storage is allowed between -20~60 °C.
The family counts 13 child configurations; an example is the AP-F15/AV4 variant.
At a glance
- Display size: 15.6 ″
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard cd/m²
- Video inputs: Composite BNC
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 15.6 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | Composite BNCDVIVGADisplayPort(1.0)HDMI(2.0)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 700:1(typ) |
| Backlight type | LED |
| Response time | 30 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.2988 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 344.22 × 193.62 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack2ch Linear PCM30kΩ / 2.8V(output)30kΩ / 750mV(input)Dual Stereo 2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 9 W2 W(saving)1 W(off) |
| Mounting | Desktop / StandVESA Mount(100x100) |
|---|---|
| Dimensions | 399 × 254.5 × 55.1 mm |
| Weight | 4.7 kg7.3 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | FCCWEEE (2012/19/UE)CEUKCAREACHRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-F15/DC12 |
| AP-F15/DC125 |
| AP-F15/DC24 |
| AP-F15/DC48 |
| AP-F15/DV4.4 |
| AP-F15/DV4.4/DC12 |
| AP-F15/DV4.4/DC125 |
| AP-F15/DV4.4/DC24 |
| AP-F15/DV4.4/DC48 |
| AP-F15/DV4.4/TPC10 |
| AP-F15/DV4.4/TRB |
| AP-F15/TPC10 |
| AP-F15/TRB |
