AP-2020" industrial monitor with SDI, DVI and VGA video inputs
- Manufacturer
- Configurations
- 11 available configurations

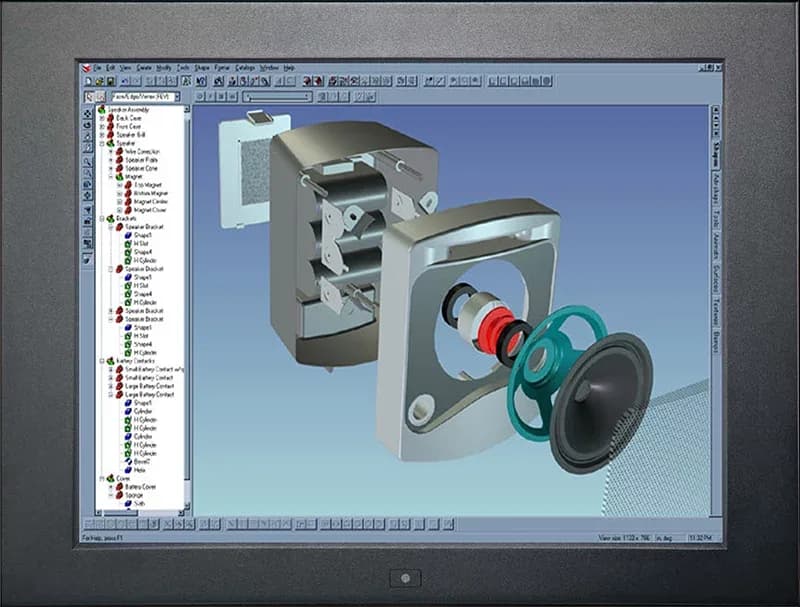

AP-20 is an Austin Hughes industrial monitor for video monitoring and control stations, designed for fixed installation in the control room, in the supervision cabin or directly in the department.
The backlight is CCFL type and operation is specified over a 0~55 °C range; the manufacturer declares an MTBF of 45,000 h.
The family counts 17 child configurations; an example is the AP-20/AV2.2D variant.
At a glance
- Display size: 20 ″
- Resolution: 1600x1200
- Brightness: Up to 399 standard cd/m²
- Video inputs: DVI
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 20 ″ |
|---|---|
| Resolution | 1600x1200 |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DVIVGASDIHDMI(1.4)HDMI(720x480)HDMI(1280x720) |
| Aspect ratio | 4:3 |
| Contrast ratio | 800:1(typ) |
| Backlight type | CCFL |
| Response time | 16 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.255 mm |
| Display colors | 16.7 M |
| Active area | 408.0 × 306.0 mm |
| Surface treatment | Anti-glare (AG)Hard-coating |
| Surface hardness | 3H |
| Audio | 2ch Linear PCM(DVI input)2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V9–18 V(optional)36–75 V(optional)18–36 V(optional)66–160 V(optional) |
| Power consumption | 45 W1 W(off)2 W(saving) |
| Mounting | Desktop / StandVESA Mount(100x100) |
|---|---|
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Operating altitude | 4876.8 m |
| MTBF | 45000 h |
| Certifications | CEREACHUKCAWEEE (2012/19/UE)FCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-20/DC12 |
| AP-20/DC125 |
| AP-20/DC24 |
| AP-20/DC48 |
| AP-20/DV4.4 |
| AP-20/DV4.4/DC12 |
| AP-20/DV4.4/DC125 |
| AP-20/DV4.4/DC24 |
| AP-20/DV4.4/DC48 |
| AP-20/DV4.4/TRB |
| AP-20/TRB |
