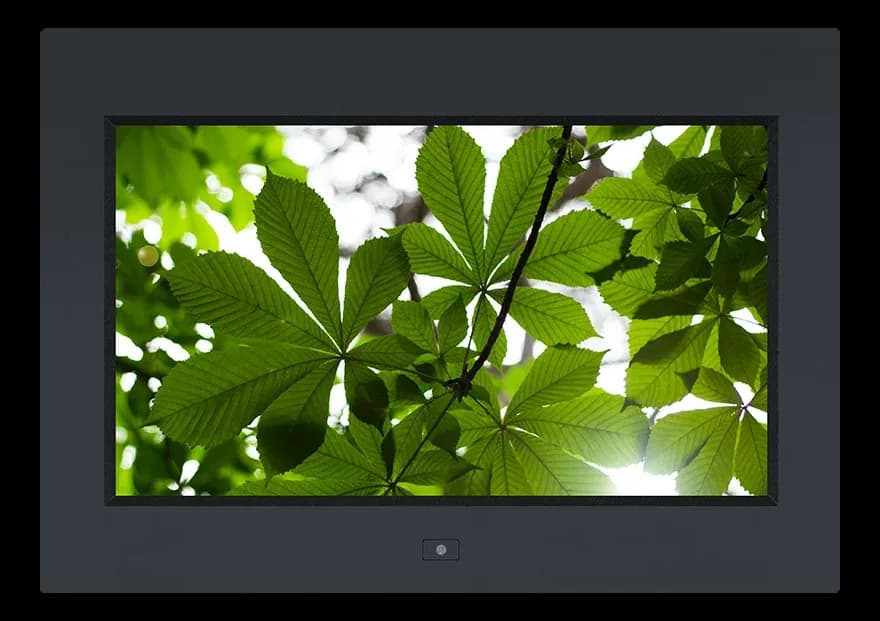

AP-F1717.3" industrial monitor with LED backlight
- Manufacturer
- Configurations
- 13 available configurations
AP-F17 is an Austin Hughes industrial monitor for operator stations, line supervision and technical environments, where it is stably integrated into the workstation.
The screen is offered with an anti-glare or hard-coating treatment depending on the version; operation is specified between 0~55 °C and the weight is 5.2 kg.
The family counts 13 child configurations; an example is the AP-F17/AV4 variant.
At a glance
- Display size: 17.3 ″
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard cd/m²
- Video inputs: DVI
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 17.3 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DVIVGAComposite BNCDisplayPort(1.0)HDMI(2.0)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 25 ms |
| Viewing angle | 85/85/85/85 |
| Pixel pitch | 0.1989 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 381.888 × 214.812 mm |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack, 30kΩ / 2.8V(output)Dual Stereo 2W x 2(speaker)3.5mm stereo jack, 30kΩ / 750mV(input) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 14 W2 W(saving)1 W(off) |
| Mounting | VESA Mount(100x100) |
|---|---|
| Dimensions | 468.5 × 331 × 57.1 mm |
| Weight | 5.2 kg8 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 50000 h |
| Certifications | FCCREACHWEEE (2012/19/UE)CEUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-F17/DC12 |
| AP-F17/DC125 |
| AP-F17/DC24 |
| AP-F17/DC48 |
| AP-F17/DV4.4 |
| AP-F17/DV4.4/DC12 |
| AP-F17/DV4.4/DC125 |
| AP-F17/DV4.4/DC24 |
| AP-F17/DV4.4/DC48 |
| AP-F17/DV4.4/TPC10 |
| AP-F17/DV4.4/TRB |
| AP-F17/TPC10 |
| AP-F17/TRB |
