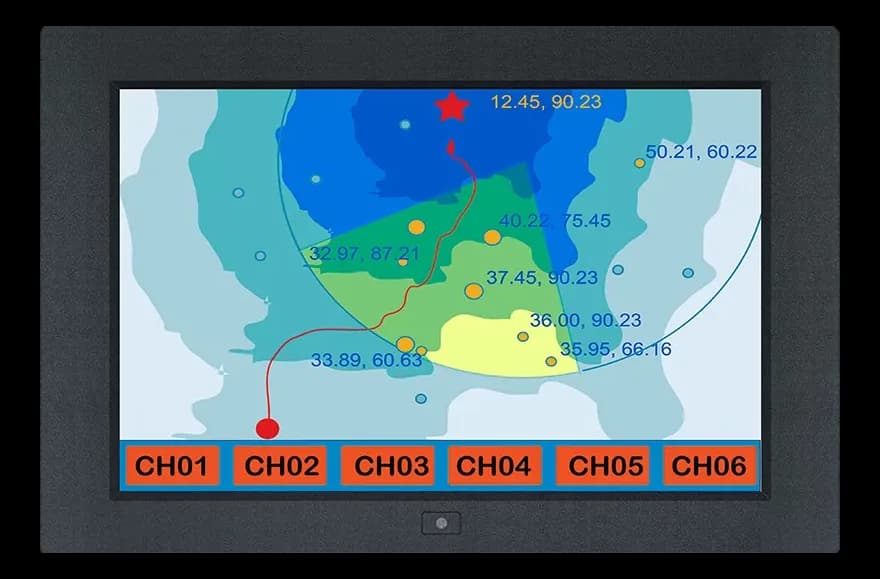

AP-W19Industrial monitor with VGA, DVI and Composite BNC video inputs
- Manufacturer
- Configurations
- 12 available configurations
AP-W19 is an Austin Hughes industrial LCD monitor for operator stations, control panels and production environments. The panel has LED backlight with an anti-glare treatment; the frame is aluminium with a Dark finish.
Among the declared data are an operating altitude of 4876.8 m and AC power input with a 100~240 V input.
The family can be ordered in numerous configurations; an example part number is AP-W19/AV4.
At a glance
- Display size: 19 ″
- Resolution: 1440x900
- Brightness: Up to 399 standard cd/m²
- Video inputs: DVI
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1440x900 |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DVIVGAComposite BNCHDMI(1.4) |
| Aspect ratio | 16:10 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 5 ms |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.2835 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 408.24 × 255.15 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack2W x 2(speaker)30kΩ / 750mV(input)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 20 W1 W(off)2 W(saving) |
| Mounting | VESA Mount(100x100) |
|---|---|
| Dimensions | 508.5 × 338.1 × 65.6 mm |
| Weight | 7 kg10 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | REACHUKCAFCCCEWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AP-W19/DC12 |
| AP-W19/DC125 |
| AP-W19/DC24 |
| AP-W19/DC48 |
| AP-W19/DV4.4 |
| AP-W19/DV4.4/DC12 |
| AP-W19/DV4.4/DC125 |
| AP-W19/DV4.4/DC24 |
| AP-W19/DV4.4/DC48 |
| AP-W19/DV4.4/TRB |
| AP-W19/TRB |
| AP-W19TRB |
