MicroTCA Blades & Modules (MTCA.0)

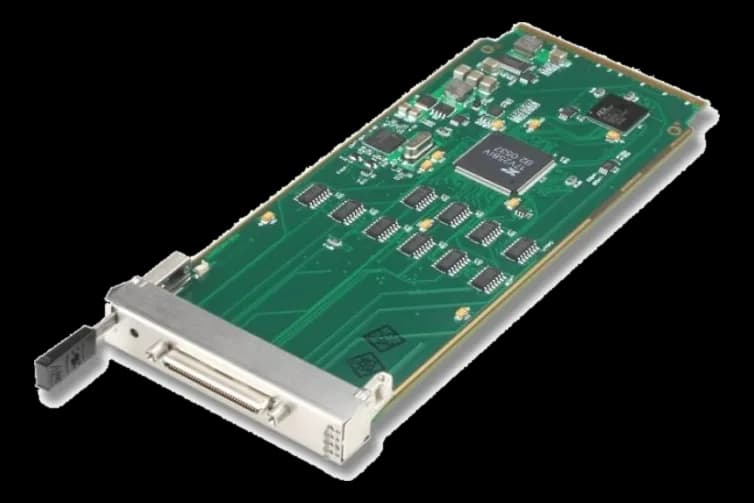

AMC320AMC.1 module with eight RS-422 and RS-485 ports
- Manufacturer
AMC320 brings eight RS-422/485 serial ports with hardware handshake on an AMC.1 module: four digital input and output ports with RS-422 signaling complete the set, while the 120 ohm termination for RS-485 is already fitted on the board.
The high-density SCSI connector opens onto standard DB-9 connectors with the optional adapter. The inputs withstand discharges up to 15 kV, stated draw is 3.5 W, MTBF 222,000 hours and storage temperature runs from -40 to 90 °C.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3.5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x4High-density SCSI type connector |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 222000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
