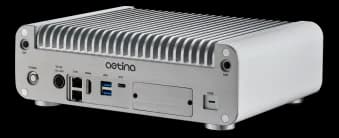

AIE-PO23-33_3M-AIE-PN33_43-3MFanless edge AI system with NVIDIA Jetson Orin NX or Orin Nano and M.2 expansion
- Manufacturer
- Configurations
- 4 available configurations
AIE-PO23/33-3M and AIE-PN33/43-3M are Aetina systems from the DeviceEdge Jetson series: the PO models carry Jetson Orin Nano 4GB or 8GB, the PN models Orin NX 8GB or 16GB. With Linux, JetPack 5.0 or later and the Aetina BSP, they run real-time AI detection and recognition at the roadside, along the line, in factories, in fields and on construction sites.
AI performance scales with the module: 20 TOPS (AIE-PO23-3M), 40 TOPS (AIE-PO33-3M), 70 TOPS (AIE-PN33-3M), 100 TOPS (AIE-PN43-3M). Two M.2 M-Key 2280 PCIe slots and one M.2 E-Key 2230 for Wi-Fi/BT are dedicated to expansion. CE, FCC Class A and UKCA certifications.
At a glance
- Isolated CAN with CAN FD support
- M.2 B-Key slot for LTE/5G modem
- Integrated 128GB NVMe SSD
- Remote management via EdgeEye
- Shock 10 G, IEC 60068-2-27
Technical specifications
| AI module | NVIDIA Jetson Orin NanoNVIDIA Jetson Orin NX |
|---|
| Storage | 1× M.2 NVMe M-Key 2242 (128GB built-in) |
|---|
| Video outputs | 1× HDMI 2.0 Type A |
|---|
| Ethernet ports | 2× RJ-45 GbE ports |
|---|---|
| USB ports | 2× USB 3.2 Gen2 Type A (support up to 10 Gbps shared); 1 x OTG Type-C |
| Serial interfaces | 1× UART, 1× I2C, 1× RS-232, 1× RS-422/485 |
| Digital I/O | 5× GPIO |
| CAN bus | 1× CAN (isolation; support CAN FD) |
| Other I/O | 1× I2C |
| Wireless | 5G |
|---|
| Expansion | 2× M.2 M-Key 2280 (PCIe)1x M.2 B-Key 3042/3052 (LTE/5G)1x M.2 E-Key 2230 (WiFi/BT)1x M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 12–24 V |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 270× 195 x 80 mm (10.63 x 7.67 x 3.15 in) |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-PN33-3M-1-A1 |
| AIE-PN43-3M-1-A1 |
| AIE-PO23-3M-1-A1 |
| AIE-PO33-3M-1-A1 |
