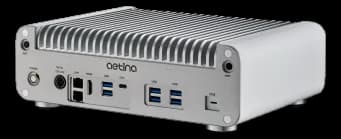

AIE-PN33-6USBOrin NX 8GB edge AI computer for wall mounting
- Manufacturer
- Configurations
- 1 available configurations
AIE-PN33-6USB is an Aetina edge AI computer for wall installations: it runs vision inference and data analysis close to cameras and sensors, without transferring the stream to a server.
The Jetson module integrates an NVIDIA Ampere GPU with 32 Tensor Cores and LPDDR5 memory; the chassis weighs 3.67 kg and the declared module power draw runs from 6.413 to 47.13 W. The declared certifications are CE, FCC and UKCA.
At a glance
- AI module: NVIDIA Jetson Orin NX
- CPU class: ARM Cortex-A78AE
- Processor: 6-core Arm® Cortex®-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3
- Memory: 8GB 128-bit LPDDR5 102.4 GB/s / 16GB 128-bit LPDDR5 102.4 GB/s
- RAM type: LPDDR5
Technical specifications
| AI module | NVIDIA Jetson Orin NX |
|---|---|
| CPU class | ARM Cortex-A78AE |
| Processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3 |
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores |
| Tensor cores | 32 |
| CUDA cores | 1024 |
| Memory | 8GB 128-bit LPDDR5 102.4 GB/s / 16GB 128-bit LPDDR5 102.4 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 NVMe M-Key 2242 (128GB integrato)(M.2-M) |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 2× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB OTG (Type-C)4× USB 3.2 Gen1 (Type-A), 2 porte con banda 8 Gbps condivisa6× USB 3.22× USB 3.2 Gen2 (Type-A), banda 10 Gbps condivisa |
| Serial interfaces | Default setting is RS-485 mode (Data-/+)DB9 male connector1× RS-2321× RS-422/485 (default RS-485)1× UART |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN, isolata, CAN FD |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT)1× M.2 B-Key 3042/3052 (LTE/5G)1× M.2 B-Key 3042/3052 (LTE/4G/5G)1× M.2 M-Key 2242 (NVMe 128GB integrato) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Power consumption | 6.413–47.13 W1 W(can bus) |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 270 × 80 × 195 mm |
| Weight | 3.67 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–55 °C |
| Storage temperature | -40–85 °C |
| Certifications | CEFCCUKCA |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-PN33-6USB-1-A1 |
