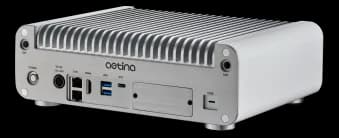

AIE-PO22_32-S2-AIE-PN32_42-S2Fanless edge AI system with NVIDIA Jetson Orin Nano or Orin NX in Super Mode
- Manufacturer
AIE-PO22/32-S2 and AIE-PN32/42-S2 are fanless DeviceEdge systems for AI inference in the field: traffic analysis, security, retail, logistics robots and AMRs, precision agriculture and factory automation. The chassis measures 270 x 195 x 80 mm, weighs 4.2 kg and runs on Linux.
The distinctive feature is Super Mode: the Jetson module gains up to 70% more AI compute, up to 50% more memory bandwidth and twice the performance on generative models. The system is designed to handle the resulting thermal and electrical loads and supports out-of-band management with the Aetina EdgeEye platform.
Available configurations: AIE-PO22-1-S2 with Orin Nano 4GB (34 TOPS), AIE-PO32-1-S2 with Orin Nano 8GB (67 TOPS), AIE-PN32-1-S2 with Orin NX 8GB (117 TOPS), AIE-PN42-1-S2 with Orin NX 16GB (157 TOPS).
At a glance
- 12–24 VDC input
- 128 GB NVMe onboard on M.2 M-Key
- M.2 B-Key for 4G/5G with 1PPS
- Integrated TPM 2.0
- Certified CE, FCC Class A and UKCA
Technical specifications
| AI module | NVIDIA Jetson Orin NanoNVIDIA Jetson Orin NX |
|---|---|
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores(variant AIE-PO32-1-S2)512 Core NVIDIA Ampere, with 16 Tensor Cores(variant AIE-PO22-1-S2) |
| Memory | 16GB 128-bit LPDDR5 102.4 GB/s4GB 64-bit LPDDR5 51 GB/s(variant AIE-PO22-1-S2)8GB 128-bit LPDDR5 102.4 GB/s(variant AIE-PN32-1-S2)8GB 128-bit LPDDR5 68 GB/s(variant AIE-PO32-1-S2) |
|---|
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| Video outputs | 1× HDMI 2.0 Type A |
|---|
| Ethernet ports | Support 2× RJ-45 GbE Ports |
|---|---|
| USB ports | 1× OTG Type-C2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)(front) |
| Serial interfaces | 1× RS-422/485 (2-in-1),1 x RS-232 |
| Digital I/O | 5× GPIO, |
| CAN bus | 1× CAN (isolation; support CAN FD) |
| Wireless | BluetoothWi-Fi |
|---|
| Expansion | 1× M.2 B-Key 3042/3052 (LTE/4G/5G) with 1PPS function supported at 1.8V / 3.3V)1 x M.2 E-Key 2230 (WiFi/BT)1 x M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| Supply voltage | DC-in 12-24VDC / 4-Pin DC Jack Power Connector |
|---|
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 270× 195 x 80 mm (10.63 x 7.67 x 3.15 in) |
| Weight | 4.2 kg |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC(class A) |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
