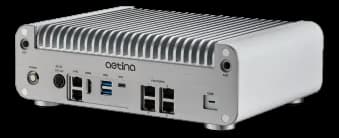

AIE-PN43-2PSEEdge AI computer with Jetson Orin NX 16GB and 100 TOPS
- Manufacturer
- Configurations
- 1 available configurations
AIE-PN43-2PSE is an Aetina edge AI platform: it runs vision and analysis models directly in the field, where the bandwidth to the data center is not enough or the latency is not acceptable.
The NVIDIA Ampere GPU integrated in the Jetson module brings 32 Tensor Cores alongside LPDDR5 memory. Power is 12~24 V DC and the declared module power draw runs from 6.413 to 89.13 W.
At a glance
- AI module: NVIDIA Jetson Orin NX
- AI performance: 100 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 8-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3
- Memory: 16GB 128-bit LPDDR5 102.4 GB/s
Technical specifications
| AI module | NVIDIA Jetson Orin NX |
|---|---|
| AI performance | 100 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 8-core Arm® Cortex® -A78AE v8.2 64-bit 2MB L2 + 4MB L3 |
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores |
| Tensor cores | 32 |
| CUDA cores | 1024 |
| Memory | 16GB 128-bit LPDDR5 102.4 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 NVMe M-Key 2242 (128GB built-in)(M.2-M) |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 2× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen2 (Type-A), 10 Gbps bandwidth shared |
| Serial interfaces | 1× UART1× RS-2321× RS-422/485 |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN, isolated, CAN FD |
| PoE | 802.3af PoE(RJ45) |
| Expansion | 1× M.2 B-Key 3042/3052 (LTE/5G)1× M.2 E-Key 2230 (Wi-Fi/BT)1× M.2 M-Key 2242 (NVMe 128GB built-in) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 12–24 V DC |
| Power consumption | 6.413–89.13 W |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Dimensions | 270 × 80 × 195 mm |
| Cooling | Fanless |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEFCCUKCA |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-PN43-2PSE-1-A1 |
