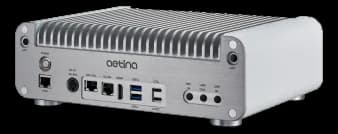

AIE-PX13-1-A1AGX Orin 32GB edge AI computer with 200 TOPS of inference
- Manufacturer
AIE-PX13-1-A1 is an AGX class Aetina edge AI platform: it sustains several simultaneous video streams for optical inspection, quality control and mobile robotics.
The module's NVIDIA Ampere GPU has 1792 CUDA cores and 56 Tensor Cores, with an 8-core Arm CPU and LPDDR5 memory. The DC input accepts 9~36 V and the declared module power draw runs from 5.5 to 51.08 W.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- AI performance: 200 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- Memory: 32GB 256-bit LPDDR5 204.8 GB/s
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| AI performance | 200 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Graphics | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores |
| Tensor cores | 56 |
| CUDA cores | 1792 |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 64GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 1× GbE (RJ-45)1× 10GbE (RJ-45) |
|---|---|
| USB ports | 2× USB 3.2 Gen1 (Type-A)1× USB 3.2 Gen2 (Type-C)1× USB 2.0 (DB-15)1× USB 2.0 OTG (Type-C) |
| Serial interfaces | 1× RS-2321× RS-422/485 (2-in-1)2× UART |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b, isolate, CAN FD |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 5.5–51.08 W |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 270 × 80 × 195 mm |
| Weight | 4.2 kg |
| Operating temperature | -25–55 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | FCCCEUKCA |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
