AIB-MX23Edge AI platform AGX Orin 64GB with integrated TPM 2.0
- Manufacturer
- Configurations
- 1 available configurations

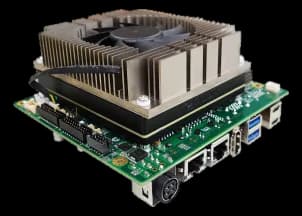

AIB-MX23 is an Aetina edge AI board based on the NVIDIA Jetson AGX Orin module, for machine vision and data analysis applications that require local processing and a hardware root of trust on the device.
The Arm Cortex-A78AE CPU has 12 cores and the GPU integrates 64 Tensor Cores, with LPDDR5 memory. The 0.701 kg weight and the wide-range DC input ease integration in cabinets and on machines.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- AI performance: 275 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
- Memory: 64 GB 256-bit LPDDR5, 204.8 GB/s
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| AI performance | 275 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Graphics | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| Tensor cores | 64 |
| CUDA cores | 2048 |
| Memory | 64 GB 256-bit LPDDR5, 204.8 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 64 GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 1× 10GbE (RJ-45)1× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB 3.2 Gen2 (Type-C)1× USB OTG (Type-C)2× USB 3.2 Gen1 (Type-A)1× USB 2.0 |
| Serial interfaces | 1× RS-422/485 (uno dei due)1× RS-232 |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b, isolato |
| Expansion | 1× M.2 E-Key 2230 (WiFi/BT, PCIe/USB 2.0)1× M.2 M-Key 2280 (NVMe, PCIe Gen4 x4)1× M.2 M-Key 2280 (NVMe, PCIe x2 Gen4)1× M.2 E-Key 2230 (Wi-Fi/BT)1× M.2 B-Key 3042/3052 (LTE/4G/5G, USB 3.2/USB 2.0) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 1 W(can bus) |
| Battery / UPS | With super capacitor, battery(optional) |
| Weight | 0.701 kg |
|---|
| Operating temperature | -25–80 °C |
|---|
| Certifications | FCCCEUKCA |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIB-MX23-1-A1 |
