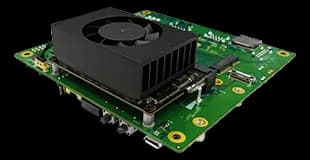

AN810-XNX16Xavier NX Edge AI board with CAN bus and 12~19 V input
- Manufacturer
- Configurations
- 3 available configurations
AN810-XNX16 is a small-format Aetina Edge AI board: it runs vision and analysis models locally, in plants and vehicles where there is no room for a complete industrial box.
The graphics section of the Jetson module has 48 Tensor Cores, alongside a 6-core NVIDIA Carmel Arm CPU. The unit weighs 0.19 kg, is DC powered and declares a module power draw between 1.68 and 15.97 W.
At a glance
- AI module: NVIDIA Jetson Xavier NX
- AI performance: 14 TOPS @10W
- CPU class: ARM Carmel
- Processor: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
- Memory: 16 GB 128-bit LPDDR4x, 59.7 GB/s
Technical specifications
| AI module | NVIDIA Jetson Xavier NX |
|---|---|
| AI performance | 14 TOPS @10W21 TOPS @15W |
| CPU class | ARM Carmel |
| Processor | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Graphics | 384 CUDA cores and 48 Tensor cores |
| Tensor cores | 48 |
| CUDA cores | 384 |
| Memory | 16 GB 128-bit LPDDR4x, 59.7 GB/s |
|---|---|
| RAM type | LPDDR4x |
| Storage | 16 GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI (Type-A) |
|---|
| Ethernet ports | 1× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB 2.0 (Micro-AB), solo OTG2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-232 |
| Audio | HDMI Integrated |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN |
| Other I/O | 1 x SPI · 3 x I2C · 2 x UART1 / UART2 · 1 x UART3 (Debug Only) |
| Expansion | 1× M.2 B-Key 3050 (LTE/5G - USB3), SIM holder, funzione cellulare1× M.2 E-Key 2230 (PCIe/USB2), modulo WIFI/BT1× M.2 M-Key 2280 (NVMe), storage |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–19 V |
| Power consumption | 1.68–15.97 W |
| Dimensions | 120 × 28.5 × 120 mm |
|---|---|
| Weight | 0.19 kg |
| Cooling | Fan (active) |
|---|
| Certifications | CEFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AN810-XNX16-BN01 |
| AN810-XNX16-BN03 |
| AN810-XNX16-BN70 |
