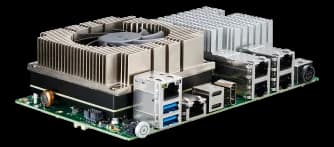

AIB-MX12Edge AI board configurable with Jetson AGX Orin 32GB or 64GB
- Manufacturer
- Configurations
- 1 available configurations
AIB-MX12 is an Aetina edge AI board for inference and machine vision applications in industry, where data processing has to remain on the plant.
The system is ordered with a 32GB or 64GB NVIDIA Jetson AGX Orin module: the choice of module determines the number of CPU cores, CUDA cores and Tensor Cores available. The memory is LPDDR5 and the declared module power draw runs from 10.5 to 125 W.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- CPU class: ARM Cortex-A78AE
- Processor: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- RAM type: LPDDR5
- Storage: 64 GB eMMC 5.1
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| CPU class | ARM Cortex-A78AE |
| Processor | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Tensor cores | 56 |
| CUDA cores | 1792 |
| RAM type | LPDDR5 |
|---|
| Storage | 64 GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A)Risoluzione fino a 4K@60Hz(HDMI) |
|---|
| Ethernet ports | 1× GbE (RJ-45)1× 10GbE (RJ-45)GbE nativa del SOM NVIDIA |
|---|---|
| USB ports | 1× USB 3.2 Gen2 (Type-C)1× USB 2.0 OTG (Type-C)2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-422/4851× RS-232 |
| Audio | Line-out/Line-in/Mic (opzionale, richiede daughter board)(mic-in · optional) |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b, isolato, supporta CAN FD |
| PoE | 4× GbE (RJ-45), PSE802.3af PoE |
| Expansion | 1× M.2 M-Key 2280 (NVMe, PCIe Gen4 x4)1× M.2 B-Key 3042/3052 (LTE/4G/5G)1× M.2 E-Key 2230 (Wi-Fi/BT) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 10.5–125 W1 W(can bus) |
| Battery / UPS | RTC battery CR2032 (default with battery) |
| Dimensions | 176 × 57.32 × 132 mm |
|---|---|
| Weight | 0.98 kg |
| Operating temperature | -25–80 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | FCCCEUKCA |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIB-MX12-1-A2 |
