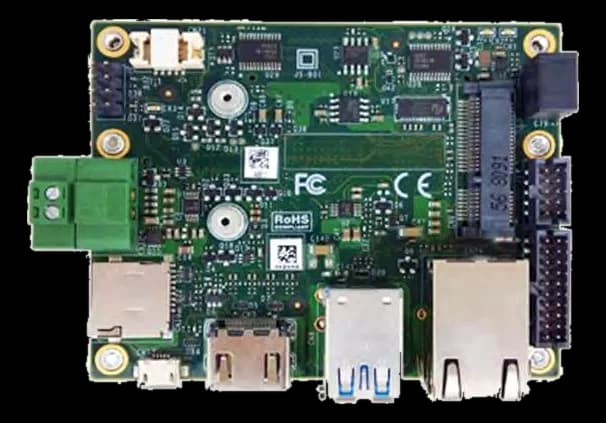

AN310-TX2Compact edge AI board with Jetson TX2
- Manufacturer
AN310-TX2 is an Aetina edge AI board with an NVIDIA Jetson TX2 4GB module, a GbE port, two CAN buses and a compact 87×67 mm format.
At a glance
- AI module: NVIDIA Jetson TX2
- AI performance: Up to 40
- CPU class: ARM
- Memory: 4 GB
- Storage: 16 GB eMMC
Technical specifications
| AI module | NVIDIA Jetson TX2 |
|---|---|
| AI performance | Up to 40 |
| CPU class | ARM |
| CUDA cores | 256 |
| Memory | 4 GB |
|---|
| Storage | 16 GB eMMC |
|---|
| Video outputs | 1× HDMI 2.0 |
|---|
| Ethernet ports | 1× GbE |
|---|---|
| USB ports | 2× USB 3.0 (Type-A), 1× USB 2.0 Micro |
| Serial interfaces | 1× COM |
| Digital I/O | 5× GPIO |
| CAN bus | 2× CAN |
| Expansion | 1× M.2 E-Key, 1× M.2 B-Key (LTE), 1× mPCIe, 1× MIPI CSI-2 |
|---|
| Operating temperature | -25–80 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
