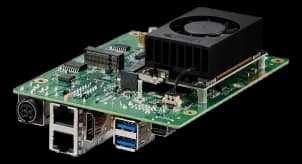

AIB-MN32Edge AI board with Jetson Orin NX 8GB and 70 TOPS of inference
- Manufacturer
- Configurations
- 1 available configurations
AIB-MN32 is an Aetina edge AI board based on the NVIDIA Jetson Orin NX 8GB module, intended for processing video streams and process data directly on the machine or on the plant, where the link to a central system is not continuous.
The NVIDIA Ampere GPU integrates 32 Tensor Cores and works with LPDDR5 memory, for a declared inference capability of 70 TOPS. The 0.195 kg weight and the wide-range DC input allow mounting in panels and cabinets with limited space.
At a glance
- AI module: NVIDIA Jetson Orin NX
- AI performance: 70 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 6-core Arm® Cortex® -A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
- Memory: 8 GB 128-bit LPDDR5, 102.4 GB/s
Technical specifications
| AI module | NVIDIA Jetson Orin NX |
|---|---|
| AI performance | 70 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 6-core Arm® Cortex® -A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 |
| Graphics | 1024 Core NVIDIA Ampere, with 32 Tensor Cores |
| Tensor cores | 32 |
| CUDA cores | 1024 |
| Memory | 8 GB 128-bit LPDDR5, 102.4 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB integrato) |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 2× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen2 (Type-A), banda 10 Gbps condivisa |
| Serial interfaces | 1× RS-422/4851× RS-2321× UART (solo debug) |
| Audio | Line-out/Line-in/Mic (opzionale, con daughter board)(mic-in · optional) |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | Isolamento 5.7 kVrms1× CAN, isolato |
| Expansion | 1× M.2 B-Key 3042/3052 (LTE/4G/5G)1× M.2 E-Key 2230 (WiFi/BT)1× M.2 M-Key 2242 (NVMe 128GB integrato, PCIe x4 Gen4) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Battery / UPS | With super capacitor, battery(optional) |
| Dimensions | 120 × 57.54 × 100 mm |
|---|---|
| Weight | 0.195 kg |
| Operating temperature | -25–80 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIB-MN32-1-A1 |
