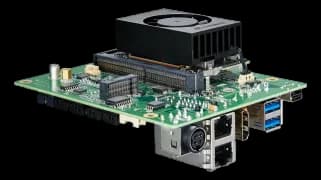

AIB-MO22Edge AI board with Jetson Orin Nano 4GB and 20 TOPS of inference
- Manufacturer
- Configurations
- 2 available configurations
AIB-MO22 is an Aetina edge AI board based on the NVIDIA Jetson Orin Nano 4GB module, suited to light inference and video processing tasks carried out close to the sensors, in locations where no climate-controlled cabinet is provided.
The 512-core NVIDIA Ampere GPU with 16 Tensor Cores and the LPDDR5 memory provide a declared inference capability of 20 TOPS. At a weight of 0.195 kg, the board fits into panels and machines where the available space is limited.
At a glance
- AI module: NVIDIA Jetson Orin Nano
- AI performance: 20 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
- Memory: 4 GB 64-bit LPDDR5, 34 GB/s
Technical specifications
| AI module | NVIDIA Jetson Orin Nano |
|---|---|
| AI performance | 20 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 |
| Graphics | 512 Core NVIDIA Ampere, with 16 Tensor Cores |
| Tensor cores | 16 |
| CUDA cores | 512 |
| Memory | 4 GB 64-bit LPDDR5, 34 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 1× M.2 M-Key 2242 (NVMe 128GB integrato) |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 2× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB OTG (Type-C)2× USB 3.2 Gen2 (Type-A), banda 10 Gbps condivisa |
| Serial interfaces | 1× UART (solo debug)1× RS-422/4851× RS-232 |
| Audio | Line-out/Line-in/Mic (opzionale, con daughter board)(mic-in · optional) |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 1× CAN, isolatoIsolamento 5.7 kVrms |
| Expansion | 1× M.2 M-Key 2242 (NVMe 128GB integrato, PCIe x4 Gen3)1× M.2 E-Key 2230 (WiFi/BT)1× M.2 B-Key 3042/3052 (LTE/4G/5G) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Power consumption | 7–28.68 W |
| Battery / UPS | With super capacitor, battery(optional) |
| Dimensions | 120 × 57.54 × 100 mm |
|---|---|
| Weight | 0.195 kg |
| Operating temperature | -25–80 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIB-MO22-1-A1 |
| AIB-MO22-1-S1 |
