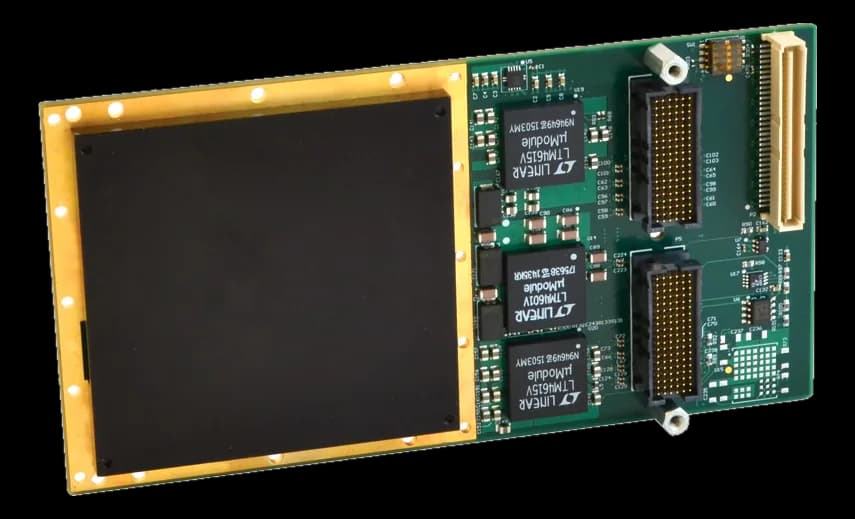

XMC730CCConduction-cooled multifunction XMC module with rear I/O
- Manufacturer
XMC730CC is a multifunction XMC mezzanine module: it joins analog inputs and outputs, digital I/O and counter/timer on a single mezzanine board, for compact measurement and control systems.
The I/O is brought to the P16 and P4 rear connectors and cooling takes place by conduction onto a cold plate. The counter/timer is 32 bit and the design is declared for the VITA 47 OS1 class on shock and V1 on vibration; storage reaches 100 °C.
At a glance
- Memory: 1M Byte
- Architecture standard: XMC VITA 42/61
- Board function: Analog and digital I/O
- Operating temperature: -40–85 °C
Technical specifications
| Memory | 1M Byte |
|---|
| Connectors | Mezzanine P14/P15/P16(rear) |
|---|
| Counter | +5V or 12V with 1K pull-up, set by DIP switch |
|---|
| Architecture standard | XMC VITA 42/61 |
|---|---|
| Board function | Analog and digital I/O |
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -55–100 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
