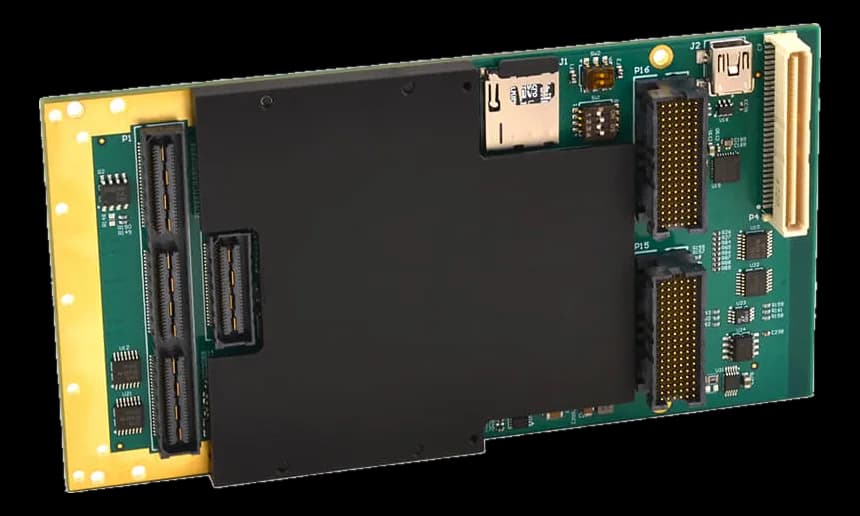

XMC-ZU5EV1-42-30XMC module with Zynq UltraScale+ MPSoC and AXM I/O, air cooled
- Manufacturer
XMC-ZU5EV1-42-30 is an XMC mezzanine module built around an AMD Zynq UltraScale+ MPSoC, which pairs a quad-core ARM Cortex-A53 application processor, declared up to 1.5 GHz, with a programmable logic section.
This version carries VITA 42 connectors, front AXM I/O and rugged class air cooling. The DDR4 memory and the H.265/H.264 video codec make it suited to image processing and acquisition applications on host boards.
At a glance
- CPU cores: 2–4
- CPU frequency: 1.5 GHz
- RAM type: DDR4
- Architecture standard: XMC VITA 42/61
- Board function: FPGA
Technical specifications
| CPU cores | 2–4 |
|---|---|
| CPU frequency | 1.5 GHz |
| RAM type | DDR4 |
|---|
| Architecture standard | XMC VITA 42/61 |
|---|---|
| Board function | FPGA |
| Bus interface | PCIe bus 4-lane (x4) Gen 3 interface |
| Power consumption | 9.16 W0.26 W(+3.3V) |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Storage temperature | -55–125 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
