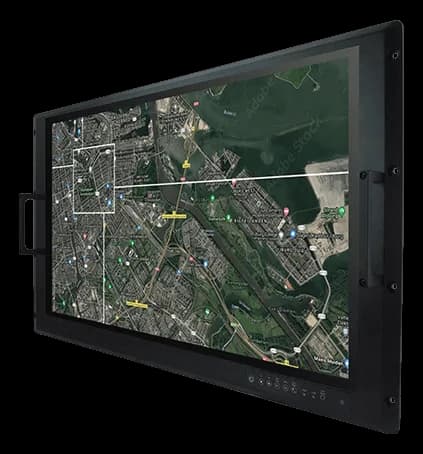

W32L100-MLA3FP32-inch fanless rugged monitor with a 4000:1 contrast ratio
- Manufacturer
W32L100-MLA3FP is a large-format Winmate rugged monitor for HMI stations, control rooms and production lines, with an aluminum and metal frame and mounting on a VESA bracket.
It tolerates relative humidity from 10 to 95% and storage temperatures from -10 to 60 °C, for continuous use in unconditioned industrial environments.
At a glance
- Display size: 32 ″
- Resolution: 1920x1080 FHD
- Brightness: 400-599 high cd/m²
- Video inputs: VGA
- Contrast ratio: 4000:1
Technical specifications
| Display size | 32 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | 400-599 high cd/m² |
| Touchscreen | PCAP(optional)PCAP(default) |
| Video inputs | VGADVIHDMI |
| Contrast ratio | 4000:1 |
| Viewing angle | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 698.4 × 392.85 mm |
| OSD controls | 7 key: Power, Decrease, Increase, Exit/ Auto, Menu, Day/ Night, Lock/ Unlock |
| USB ports | 1× USB for Touch Screen |
|---|
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | MIL-STD-810FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
