W32IT3S-MLA3FP32" rugged panel PC with capacitive touch and a 400 cd/m² display
- Manufacturer

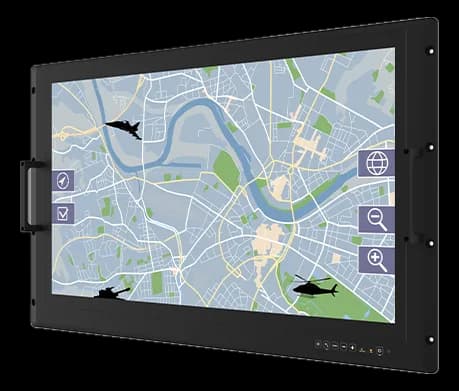

W32IT3S-MLA3FP is a large-diagonal Winmate rugged panel PC for line supervision, control rooms and process visualization, with an aluminum and metal chassis.
It stands out for the dual AC/DC power input and for the operating range from 0 to 50 °C with humidity from 10 to 95%; storage is tolerated from -10 to 60 °C. The CPU frequency runs from 2.4 to 4.4 GHz and MIL-STD-810 testing attests to its environmental resistance.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 32 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | 400-599 high cd/m² |
| Touchscreen | PCAP |
| Contrast ratio | 4000:1 |
| Aspect ratio | 16:9 |
| Viewing angle | 89,89,89,89 |
| Active area | 698.4 × 392.85 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ-452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 825 × 500 × 87.2 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | FCCMIL-STD-461CEMIL-STD-810 |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
