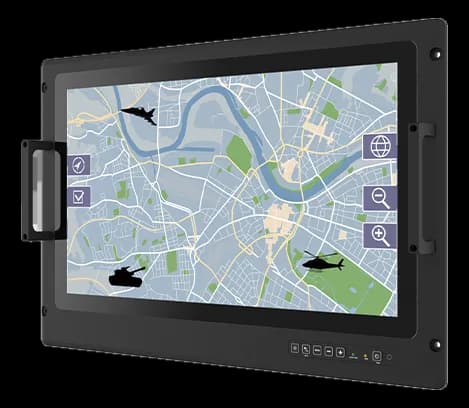

W22IT3S-MLA3FP21.5" rugged panel PC with a 3000 contrast ratio
- Manufacturer
W22IT3S-MLA3FP is a rack-format Winmate rugged panel PC for control rooms, cabinets and centralized HMI stations, with an aluminum and metal chassis and fanless cooling.
The features that set it apart are the brightness of 250 cd/m² and the operating range from 0 to 50 °C with humidity from 10 to 95%; storage is tolerated from -10 to 60 °C. MIL-STD-810 testing attests to its environmental resistance.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(optional)PCAP(default) |
| Contrast ratio | 3000:1 |
| Aspect ratio | 16:9 |
| Viewing angle | 89,89,89,89 |
| Active area | 476.64 × 268.11 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ-452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| Sensors | Built-in Light Sensor for auto brightness control |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountVESA Mount(optional) |
|---|---|
| Dimensions | 580 × 384 × 71 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | FCCMIL-STD-461CEMIL-STD-810 |
|---|
| Operating systems | Windows 11 IoTLinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
