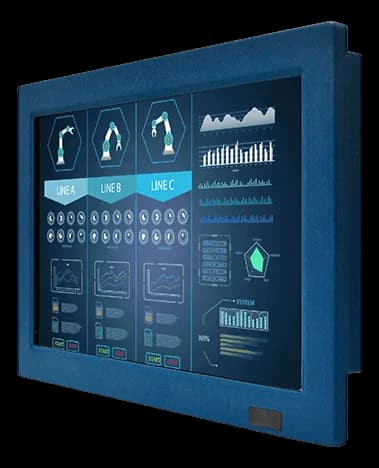

W12L100-VMM912.1-inch fanless rugged monitor with VESA mounting
- Manufacturer
W12L100-VMM9 is a compact Winmate rugged industrial monitor for vehicles, machines and control cabinets, with an aluminum frame that eases integration on board.
It withstands storage temperatures from -30 to 70 °C and the panel offers a 1000:1 contrast ratio, keeping legibility in installations with variable lighting.
At a glance
- Display size: 12.1 ″
- Resolution: 1280x800
- Brightness: 400-599 high cd/m²
- Contrast ratio: 1000:1
- AC/DC input: DC
Technical specifications
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1280x800 |
| Aspect ratio | 4:3 |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(default)HDMI(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 88° / 88° / 88° / 88° (L/R/U/D) |
| Display colors | 16.2M colori |
| Active area | 261.12 × 163.2 mm |
| OSD controls | 5 Keys: -, +, Power, Esc, Enter |
| USB ports | 1× USB type-A for touch screen control(optional) |
|---|---|
| Serial interfaces | 1× RS232 D-sub9 for touch screen control(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 10–60 V |
| Mounting | VESA Mount |
|---|---|
| Weight | 2.8 kg |
| Chassis material | alluminio |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -10–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
