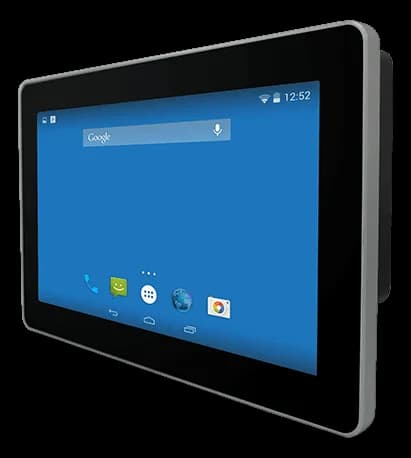

W10FA3S-GSH210.1" rugged panel PC with IP65 protection over the whole chassis
- Manufacturer
W10FA3S-GSH2 is a Winmate rugged panel PC for food lines, carts and environments subject to washdown, where protection has to cover the entire enclosure and not the front alone.
The features that set it apart are environmental tolerance, with storage from -30 to 60 °C and humidity from 10 to 95%, and the 1 GHz dual core processor. A contrast ratio of 800 and CE and FCC certifications complete the profile.
At a glance
- CPU class: ARM Cortex-A9
- Processor: NXP i.MX6 Dual Core, 1.0GHz
- CPU frequency: 1 GHz
- CPU cores: 2
- Memory: 1GB (Default) 2GB (Optional) GB
Technical specifications
| CPU class | ARM Cortex-A9 |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| CPU frequency | 1 GHz |
| CPU cores | 2 |
| Memory | 1GB (Default) 2GB (Optional) GB2GB GB(optional) |
|---|
| Storage | Onboard 16GB eMMC (Default) Onboard 32GB eMMC (Optional)1× Micro SD Card SlotOnboard 32GB eMMC(optional) |
|---|
| Display size | 10.1 ″ |
|---|---|
| Resolution | 1280x800 |
| Brightness | 1000+ sunlight cd/m²(optional)Up to 399 standard cd/m²(default) |
| Touchscreen | PCAP(default) |
| Contrast ratio | 800:1 |
| Viewing angle | 85,85,85,85 |
| Active area | 216.96 × 135.6 mm |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232 (M12 type)(Optional 422/485) |
| Audio | 1× Speaker |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 263.28 × 172 × 40.2 mm |
| Chassis material | alluminio |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | MIL-STD-810CEFCC |
|---|
| Operating systems | AndroidLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
