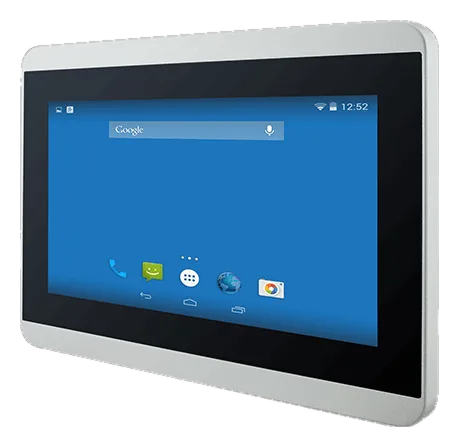

W07FA3S-GSO1Compact 7" rugged panel PC with a 1000 cd/m² display
- Manufacturer
W07FA3S-GSO1 is a compact Winmate rugged panel PC for vehicles, mobile machinery and stations with little room, where the contained format allows integration in narrow compartments as well.
The features that set it apart are the 9~24 V DC input, compatible with batteries and vehicle power supplies, and environmental resistance, with storage from -30 to 60 °C and humidity from 10 to 95%. The chassis is aluminum and metal.
At a glance
- CPU class: ARM Cortex-A9
- Processor: NXP i.MX6 Dual Core, 1.0GHz
- CPU frequency: 1 GHz
- CPU cores: 2
- Memory: 1GB (Default) GB
Technical specifications
| CPU class | ARM Cortex-A9 |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| CPU frequency | 1 GHz |
| CPU cores | 2 |
| Memory | 1GB (Default) GB2GB GB(optional) |
|---|
| Storage | Onboard 16 GB (Default) eMMC: Onboard 32 GB (Optional)1× Micro SD Card SloteMMC: Onboard 32 GB(optional) |
|---|
| Display size | 7 ″ |
|---|---|
| Resolution | 1024x600 |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | PCAP |
| Contrast ratio | 700:1 |
| Viewing angle | 75,75,75,70 |
| Active area | 153.6 × 90.0 mm |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232 (M12 type)(Optional 422/485) |
| Audio | 1× Speaker |
| AC/DC input | DC |
|---|---|
| Power input | 9–24 V |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 184.6 × 145.4 × 39.8 mm |
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | CEMIL-STD-810FCC |
|---|
| Operating systems | LinuxAndroid |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
