MicroTCA Blades & Modules (MTCA.0)

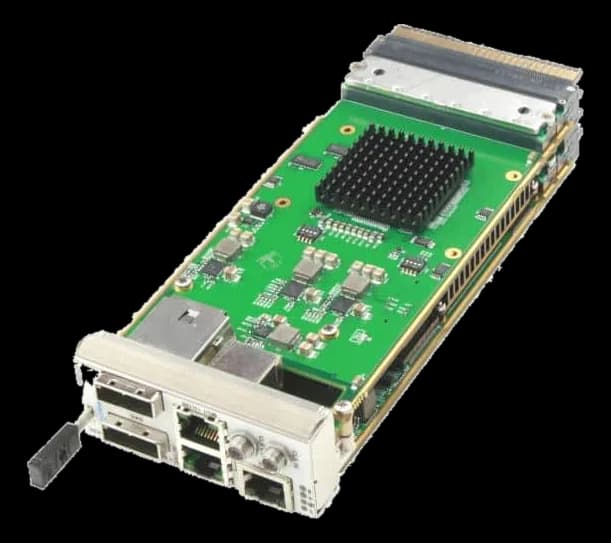

UTC001MCH for MicroTCA shelves with fabric and clock distribution
- Manufacturer
UTC001 carries out in the MicroTCA shelf the service functions that the application AMCs take for granted: it routes traffic on the backplane fabric and distributes to the modules the common clock reference.
This is the part that makes acquisitions taken by different boards synchronous, and the front diagnostics mirror it: beyond the management states, the indicators report the soundness of the reference and that frequency and phase lock have been reached. It conforms to the AMC.0 profile, with CE, FCC and UL certifications and a storage range from -40 to 90 °C.
At a glance
- Board function: MCH (carrier hub)
- Architecture standard: AMC
- Power consumption: 3 W
Technical specifications
| Other I/O | 1x10-8 |
|---|
| Board function | MCH (carrier hub) |
|---|---|
| Architecture standard | AMCMTCA |
| Bus interface | 30.72MHz (Frequencies from 8MHz to 52MHz are available, default is 30.72MHz)revision 1.3 of the RapidIO Interconnect Specification |
| IPMI management | 2.0HPM.1 Revision 1.0 |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
