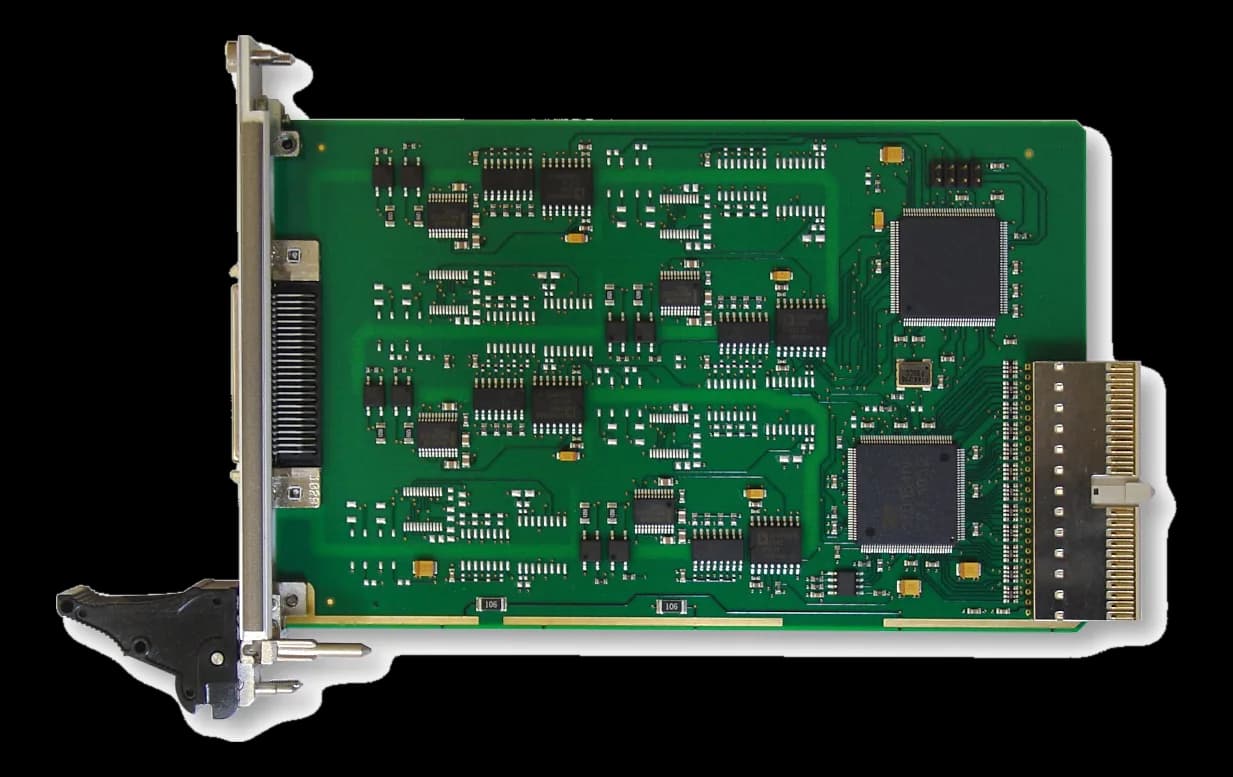

TCP470High reliability 4-channel 3U CompactPCI serial board
- Manufacturer
- Configurations
- 1 available configurations
TCP470 is a serial communication board for CompactPCI racks, intended for systems that have to reach field units over reliable serial lines.
The board is air cooled and has an MTBF of 756,000 hours, a figure that enters the reliability calculation of the complete unit.
In the catalog the family includes 1 configuration, TCP470-10R.
At a glance
- Channels: 4 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Serial interfaces | 4-Port RS-422/485 Isolated Serial Communications Card(MAX3161E)Signal RS422(MAX3161E)Software selectable RS232, RS422, RS485 full duplex, RS485 half duplex(full/half · MAX3161E)584SR/232SR(MAX3161E) |
|---|---|
| Connectors | SCSI-2 (HD50)(AMP# 787395-5) |
| Channels | 4 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | PCI Rev. 2.3 compliant; 33 MHz / 32 bit PCI; 3.3V and 5V PCI Signaling VoltageXR17D154 (Exar) |
| Weight | 0.145 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| MTBF | 756000 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TCP470-10R |
