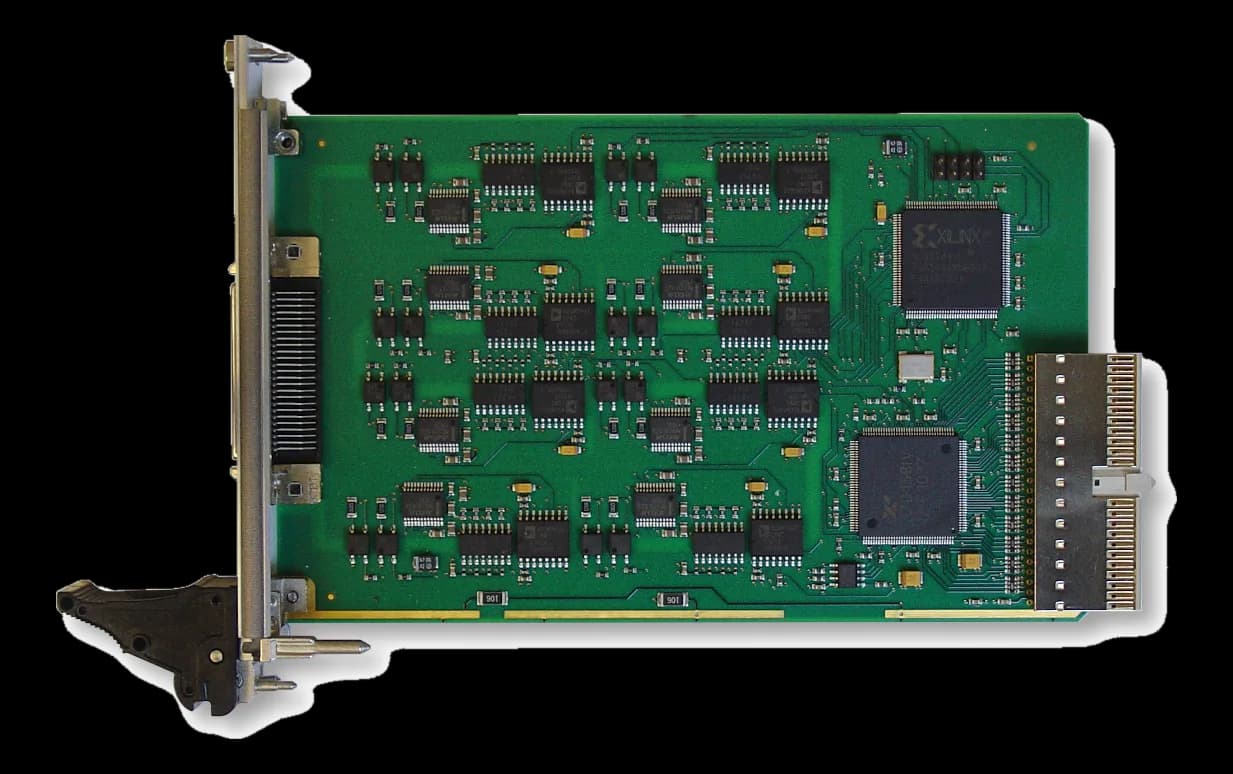

TCP4698-channel 3U CompactPCI serial board with declared MTBF
- Manufacturer
- Configurations
- 1 available configurations
TCP469 is a serial communication board for CompactPCI racks, used when many serial lines have to converge on a single slot of the rack.
The board is air cooled and has an MTBF of 578,000 hours, a figure that enters the reliability calculation of the complete unit.
In the catalog the family includes 1 configuration, TCP469-10R.
At a glance
- Channels: 8 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Serial interfaces | 4-Port RS-422/485 Isolated Serial Communications Card(MAX3161E)Signal RS422(MAX3161E)Software selectable RS232, RS422, RS485 full duplex, RS485 half duplex(full/half · MAX3161E)584SR/232SR(MAX3161E) |
|---|---|
| Connectors | SCSI-2 (HD50)(AMP# 787395-5) |
| Channels | 8 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | PCI Rev. 2.3 compliant; 33 MHz / 32 bit PCI; 3.3V and 5V PCI Signaling VoltageXR17D158 (Exar) |
| Weight | 0.145 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| MTBF | 578000 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TCP469-10R |
