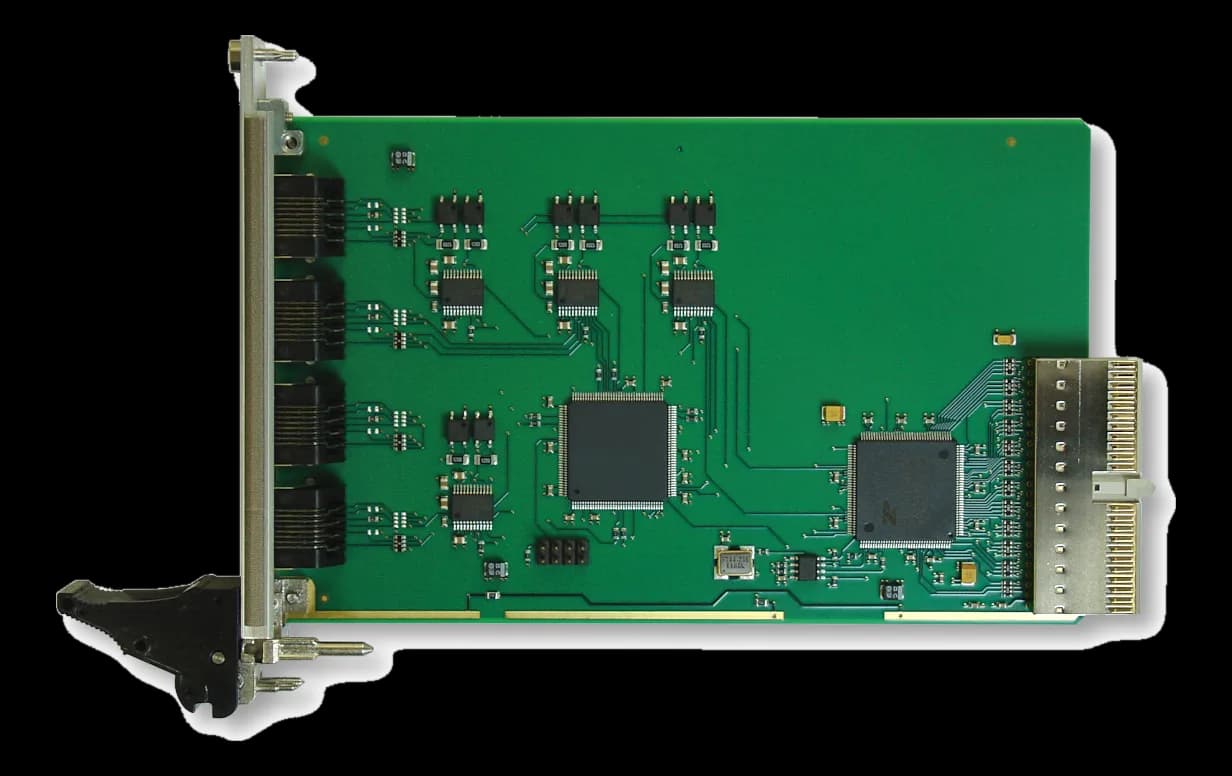

TCP4674-channel 3U CompactPCI serial board with declared MTBF
- Manufacturer
- Configurations
- 2 available configurations
TCP467 is a serial communication board for CompactPCI racks in 3U form factor, intended for systems that have to talk to field units over serial lines.
The board is air cooled and has an MTBF of 410,000 hours, a figure that enters the reliability calculation of the complete unit.
In the catalog the family includes 2 configurations, among them TCP467-10R.
At a glance
- Channels: 4 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Serial interfaces | Software selectable RS232, RS422, RS485 full duplex, RS485 half duplex(full/half · MAX3161E)Compliant to TIP866-TM-20(MAX3161E) |
|---|---|
| Connectors | RJ45 |
| Channels | 4 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | XR17D154 (Exar)PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage |
| Weight | 0.13 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| MTBF | 410000 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TCP467-10R |
| TCP467-11R |
