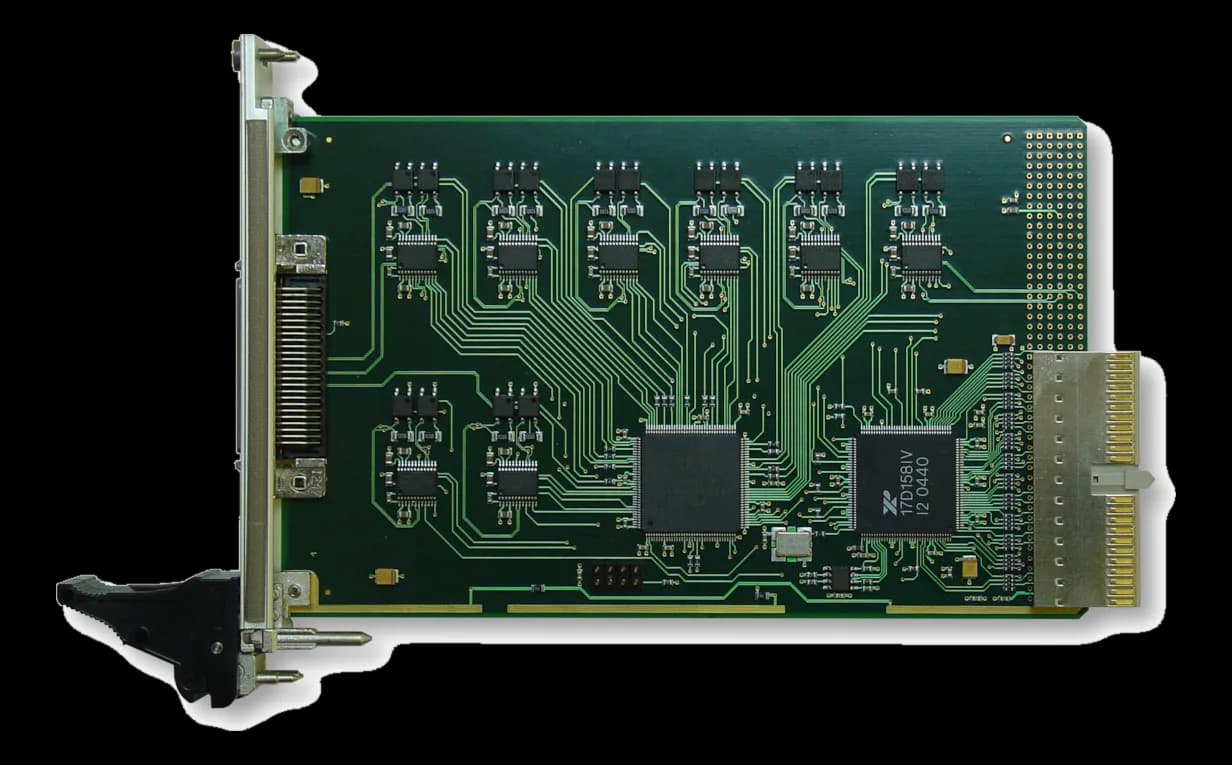

TCP465Air cooled 8-channel 3U CompactPCI serial board
- Manufacturer
- Configurations
- 2 available configurations
TCP465 is a serial communication board for CompactPCI racks in 3U form factor, used to connect field instruments and units over serial lines.
The board is air cooled and qualified over the whole industrial temperature range, which allows it to be used in cabinets without air conditioning.
In the catalog the family includes 2 configurations, among them TCP465-10R.
At a glance
- Channels: 8 channel
- Board function: Serial
- Architecture standard: cPCI 3U
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–85 °C
Technical specifications
| Serial interfaces | 584SR/232SR(MAX3161E)Software selectable RS232, RS422, RS485 full duplex, RS485 half duplex(full/half · MAX3161E) |
|---|
| Channels | 8 channel |
|---|
| Board function | Serial |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | XR17D158 (Exar)PCI Rev. 2.3 compliant; 33 MHz / 32 bit PCI; 3.3V and 5V PCI Signaling Voltage |
| Weight | 0.131 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TCP465-10R |
| TCP465-20R |
