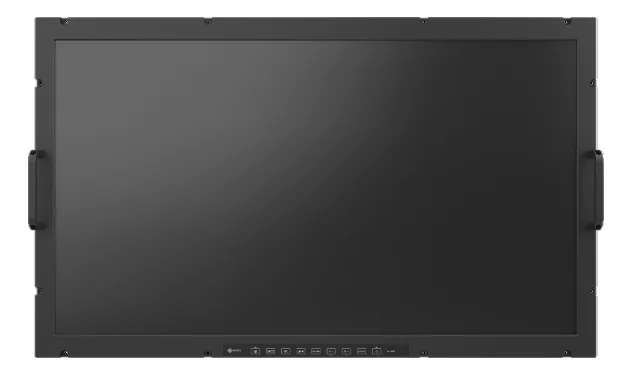

Talon RGD4300W42.5-inch rugged monitor with optical bonding and IP65-rated front
- Manufacturer
Talon RGD4300W is a large-format rugged monitor for operations rooms and command stations; the video inputs include DisplayPort and HDMI.
The panel reaches a brightness of 500 cd/m² with a 4000:1 contrast ratio; the operating altitude goes up to 5029.2 m.
At a glance
- Display size: 42.5 ″
- Resolution: 3840x2160 4K
- Touchscreen: PCAP
- Video inputs: DisplayPort
- Touch points: 10
Technical specifications
| Display size | 42.5 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | 400-599 high cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | DisplayPortHDMI |
| Contrast ratio | 4000:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.245 x 0.245 mm |
| Display colors | 1.07 miliardi di colori (10 bit) |
| Active area | 941.2 × 529.4 mm |
| Response time | 8 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 10 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|---|
| Other I/O | USB, RS-232C, RS-485 |
| AC/DC input | AC+DCAC |
|---|---|
| Power input | 18–36 V |
| Mounting | Rack MountVESA Mount |
|---|
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | MIL-STD-461MIL-STD-810UKCAFCCCEMIL-STD-704 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
