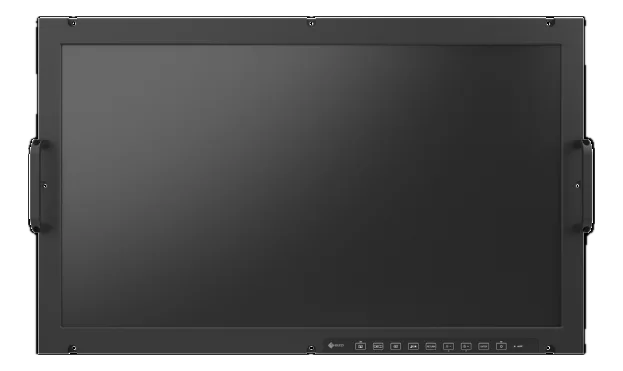

Talon RGD3202WTalon series rugged monitor with optical bonding and IP65-rated front
- Manufacturer
Talon RGD3202W is a large-format rugged monitor in the EIZO Rugged Talon line, intended for command bridges, control rooms and mission systems that require continuity of operation in difficult environmental conditions.
It is qualified for an operating altitude of 5029.2 m and withstands storage temperatures from -40 to 71 °C, requirements that recur in deployments on military platforms.
At a glance
- Display size: 32 ″
- Resolution: 3840x2160 4K
- Touchscreen: PCAP
- Video inputs: HDMI
- Touch points: 10
Technical specifications
| Display size | 32 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | HDMIDisplayPort |
| Contrast ratio | 1350:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.185 x 0.185 mm |
| Display colors | 1.07 miliardi di colori (10 bit) |
| Active area | 708.5 × 398.5 mm |
| Response time | 18 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 10 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|---|
| Other I/O | USB, RS-232C, RS-485 |
| AC/DC input | AC |
|---|---|
| Power input | 18–36 V |
| Power consumption | 108 W |
| Mounting | Rack MountVESA Mount |
|---|---|
| Dimensions | 775 × 476.5 × 109 mm |
| Weight | 16.8 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | MIL-STD-704MIL-STD-461MIL-STD-810CEFCCUKCA |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
