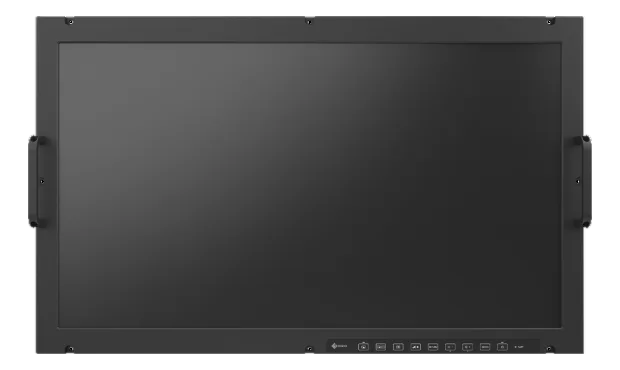

Talon RGD2700W27-inch rugged monitor with optical bonding and IP65-rated front
- Manufacturer
Talon RGD2700W is a rugged monitor in the EIZO Rugged Talon line, used in control rooms and command stations that require operational continuity in severe conditions.
The 350 cd/m² panel offers a 2000:1 contrast ratio and an 8 ms response time; the operating altitude reaches 5029.2 m.
At a glance
- Display size: 27 ″
- Resolution: 3840x2160 4K
- Touchscreen: PCAP
- Video inputs: DisplayPort
- Touch points: 10
Technical specifications
| Display size | 27 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | PCAP |
| Video inputs | DisplayPortHDMI |
| Contrast ratio | 2000:1(typ) |
| Viewing angle | 178° (H) / 178° (V) |
| Pixel pitch | 0.155 x 0.155 mm |
| Display colors | 16.77M colori (8 bit) |
| Active area | 596.7 × 335.7 mm |
| Response time | 8 ms(typ) |
| Surface treatment | Anti-glare (AG) |
| Touch points | 10 |
| Optical bonding | Yes |
| USB ports | USB 2.0 (Type-B) |
|---|---|
| Other I/O | USB, RS-232C, RS-485 |
| AC/DC input | AC+DCAC |
|---|---|
| Power input | 18–36 V |
| Mounting | VESA MountRack Mount |
|---|---|
| Dimensions | 630 × 375 × 60.5 mm |
| Weight | 13 kg |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Storage temperature | -40–71 °C |
| Operating altitude | 5029.2 m |
| Certifications | UKCAMIL-STD-810FCCCEMIL-STD-704MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
