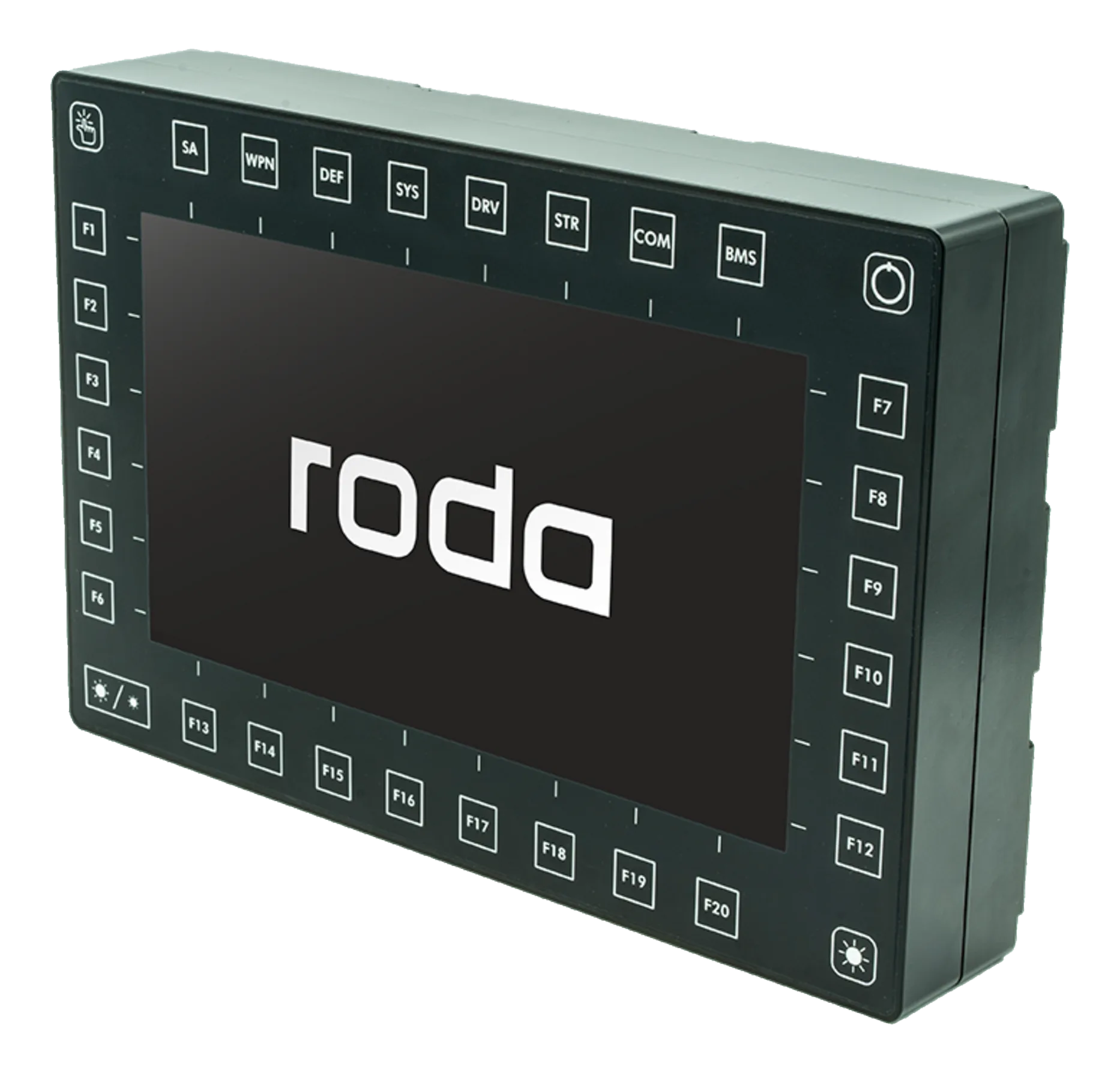

ROCCS12-FHD-BAGCompact 3 kg rugged monitor for military equipment
- Manufacturer
ROCCS12-FHD-BAG is a rugged monitor intended for military equipment and mobile stations, where small footprint and resistance to service conditions are what count. It belongs to the RODA range of displays for defense and fits into vehicle and field installations.
Its distinguishing element is the OSD control panel with a layout compliant with the Def-Stan 23-09 specification, paired with a contrast ratio of 800:1 and LED backlight.
At a glance
- Display size: 11.6
- Resolution: 1920x1080 FHD
- Brightness: 600-999 outdoor cd/m²
- Touchscreen: Resistive
- Video inputs: DVI
Technical specifications
| Display size | 11.6 |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive |
| Video inputs | DVIHDMIDisplayPort |
| Contrast ratio | 800:1 |
| Viewing angle | ±85° (H) / ±85° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| OSD controls | Def-Stan 23-09 compliant layout |
| USB ports | 2× USB 2.0 |
|---|---|
| Other I/O | 1× Analog/Digital video input |
| AC/DC input | DC |
|---|---|
| Power input | 18–32 V |
| PSU power | 30 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 315 × 210 × 80 mm |
| Weight | 3 kg |
| IP rating | IP65 |
|---|---|
| Operating temperature | 0–60 °C |
| Certifications | MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
