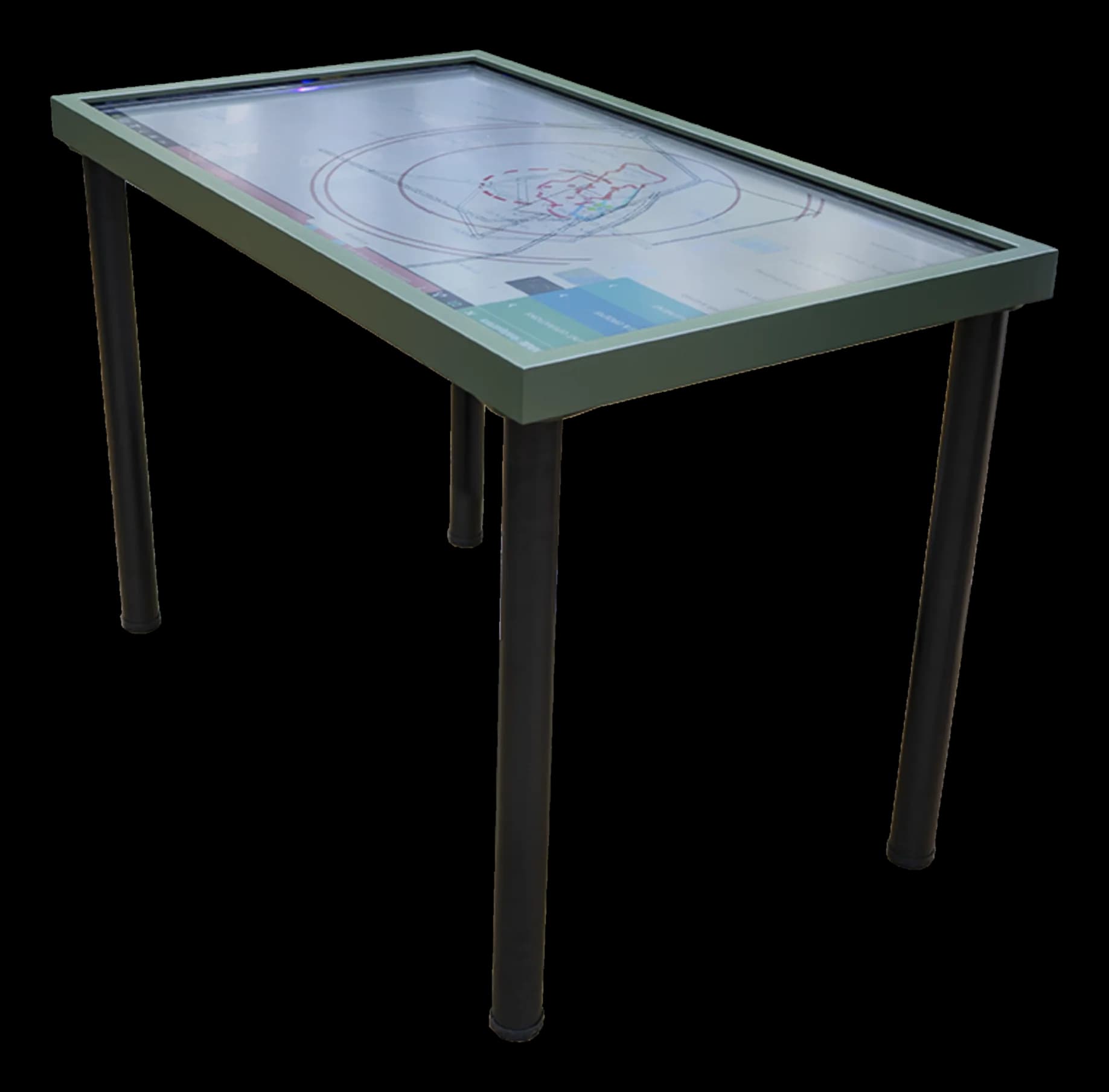

RD55-UHDLarge-format UHD rugged monitor for interactive desktop stations
- Manufacturer
This large-format display is intended for operations rooms and command centers, with an aluminum frame; it installs on a VESA mount or as a desktop station with adjustable feet.
The LED-backlit panel offers a contrast ratio of 4000:1 and a response time of 8.5 ms.
At a glance
- Display size: 54.6
- Resolution: 3840x2160 4K
- Touchscreen: Infrared
- Video inputs: DisplayPort
- Contrast ratio: 4000:1
Technical specifications
| Display size | 54.6 |
|---|---|
| Resolution | 3840x2160 4K |
| Aspect ratio | 16:9 |
| Brightness | 600-999 outdoor cd/m²(typ) |
| Touchscreen | Infrared |
| Video inputs | DisplayPort |
| Contrast ratio | 4000:1 |
| Viewing angle | 178° (H) / 178° (V) |
| Backlight type | LED |
| Response time | 8.5 ms (T ON +TO FF ) |
| OSD controls | 8 keys OSD menu |
| Touch points | Infrared multi-touch screen (10-point) |
| AC/DC input | AC |
|---|---|
| Power input | 230 VAC V |
| Mounting | Desktop / StandVESA Mount(400x400) |
|---|---|
| Dimensions | 1274,5 × 744,5 × 58,5 mm |
| Weight | 55 kg |
| Chassis material | alluminio |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–55 °C |
| Certifications | MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
