RD24-FHD-02Full HD rugged monitor with IP65 protection and camouflage mode
- Manufacturer

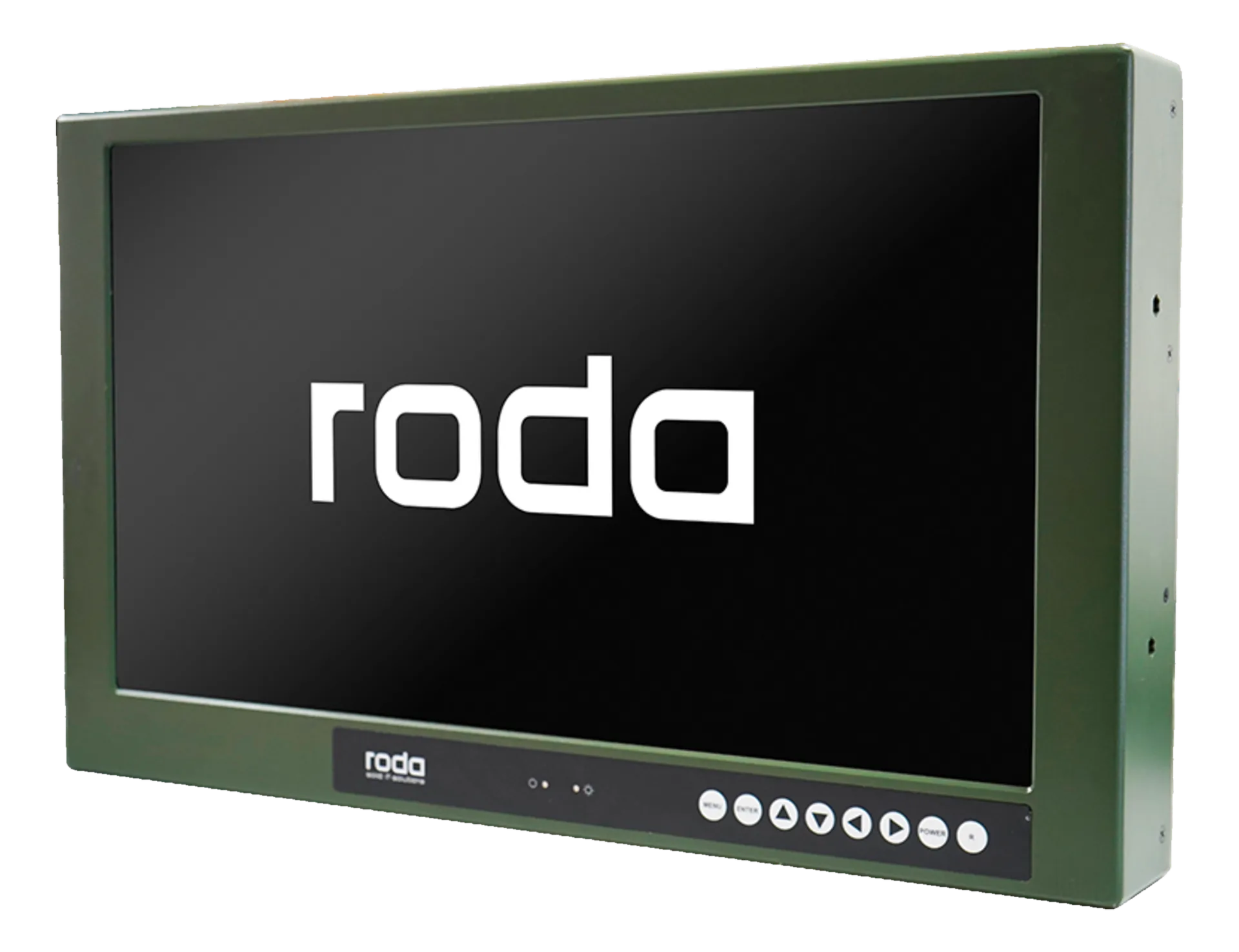

RD24-FHD-02 is a rugged monitor for installations on vehicles and in command stations; a weight of about 11 kg eases on-board mounting.
The ±178° viewing angle on both axes is paired with an operating temperature from -20 to +70 °C, for use in unprotected environments.
At a glance
- Display size: 24
- Resolution: 1920x1080 FHD
- Video inputs: DVI
- Contrast ratio: 5000:1
- USB ports: 2× USB 2.0
Technical specifications
| Display size | 24 |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | Up to 399 standard cd/m²(typ) |
| Touchscreen | Resistive(optional) |
| Video inputs | DVIVGA |
| Contrast ratio | 5000:1 |
| Viewing angle | ±178° (H) / ±178° (V) |
| Display colors | 16.7M colori (8 bit) |
| Backlight type | LED |
| Response time | 25 ms (T ON +T OFF ) |
| OSD controls | 8 keys OSD menu |
| USB ports | 2× USB 2.0 |
|---|---|
| Other I/O | 1× MIL camouflage function |
| AC/DC input | DCAC+DC |
|---|---|
| Power input | 18–32 V |
| PSU power | 120 W |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 614 × 370 × 76 mm |
| Weight | 11 kg |
| IP rating | IP65 |
|---|---|
| Operating temperature | -20–70 °C |
| Certifications | MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
