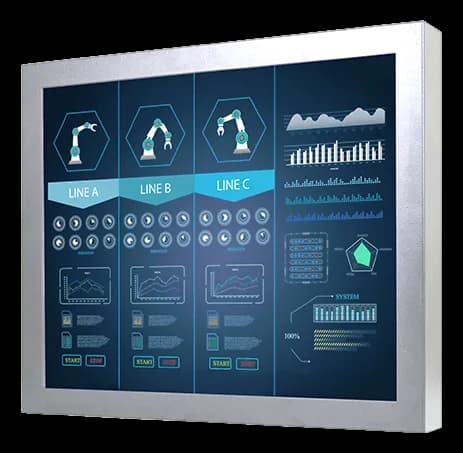

R17L500-CHA1WT17" 350 cd/m² monitor with VESA mounting
- Manufacturer
R17L500-CHA1WT is a Winmate industrial monitor for operator stations, control panels and test benches, where the display stays connected to an external processing system and is hung on the structure with an arm or a plate.
Power input is direct current with a nominal voltage of 12 V or 24 V, to be specified at the time of order; storage is allowed between -25~65 °C and the panel reproduces 16.7 million colours.
At a glance
- Display size: 17 ″
- Resolution: 1280x1024 SXGA
- Brightness: Up to 399 standard cd/m²
- Contrast ratio: 1000:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(default)HDMI(1 x HDMI (Optional) · optional)DVI(1 x DVI (Optional) · optional) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Display colors | 16.7M Colors |
| Active area | 337.92 × 270.336 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | Audio line in (3.5mm)(optional)2× Speaker(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC 12/24 V (nominali a scelta) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
