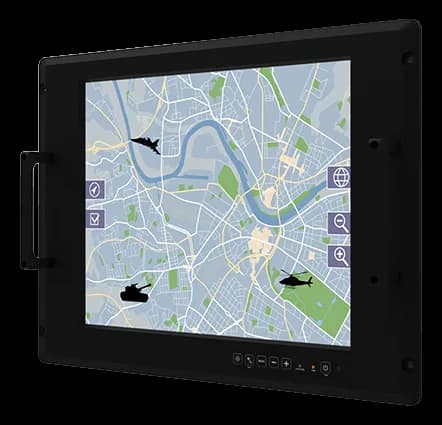

R17L100-RKA1ML17" rugged industrial monitor with dual AC and DC power input
- Manufacturer
R17L100-RKA1ML is a wide-format Winmate rugged display, intended for control rooms, operating cabs and fixed plant installations where the monitor stays in service throughout the working day.
The environmental profile provides for relative humidity from 10 to 95% and a storage temperature from -30 to 70 °C: margins that cover warehouses, transfers and installations in rooms without air conditioning.
At a glance
- Display size: 17 ″
- Resolution: 1280x1024 SXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGADVI |
| Contrast ratio | 1000:1 |
| Viewing angle | 85° / 85° / 80° / 80° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 337.92 × 270.336 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 7 key: Power, Decrease, Increase, Exit/Auto, Menu, Day/Night, Lock/Unlock |
| Other I/O | Video 1 x 15 Pin D-Sub · 5× BNC |
|---|
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
