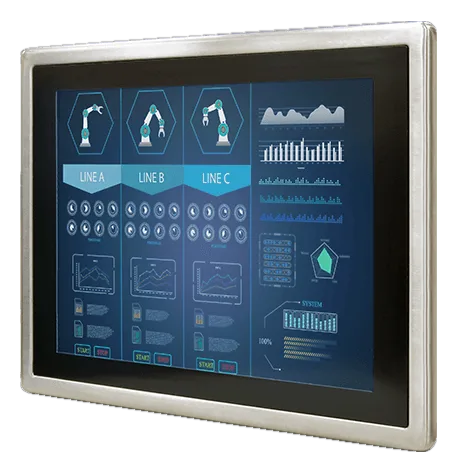

R15L600-65EX15" monitor for hazardous areas with ATEX, IECEx and UL markings
- Manufacturer
R15L600-65EX is a Winmate industrial monitor for plants with potentially explosive atmospheres: the declared approvals comprise ATEX/C1D2 and IECEx, besides the CE, FCC and UL markings.
The panel is made with optical bonding, that is with the optical layer bonded to the glass to reduce internal reflections. The declared operating range runs from -20 to 60 °C, with storage allowed between -30~70 °C.
Power input accepts a 9~36 V direct current input; mounting is on a VESA attachment and the weight is 5.7 kg.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Touchscreen: Resistive
- Video inputs: VGA
- Contrast ratio: 2000:1
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m²(default)1000+ sunlight cd/m²(optional) |
| Touchscreen | Resistive |
| Video inputs | VGA |
| Aspect ratio | 4:3 |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Display colors | 16.2M Colors |
| Active area | 304.1 × 228.1 mm |
| Optical bonding | Yes |
| OSD controls | 1× power, 2 x brightness/volume adjustment, 1 x ESC (Auto), 1 x OK (Menu) |
| USB ports | 1× M12 type connector for Touchscreen |
|---|---|
| Serial interfaces | 1× M12 type connector for RS232 remote control |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 396 × 310 × 49 mm |
| Cutout dimensions | 365 × 270 mm |
| Weight | 5.7 kg |
| Chassis material | acciaio inox |
| IP rating | IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEIECEx exATEX/C1D2ULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
