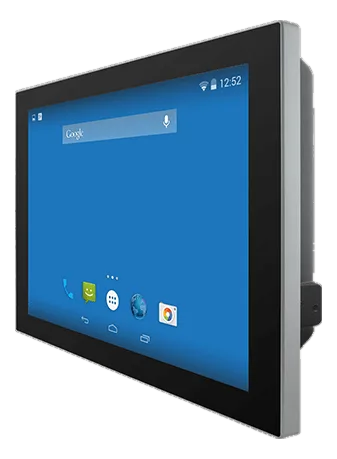

R15FA3S-GSC3(HB)15" fanless IP65 rugged panel PC with a contrast ratio of 2000
- Manufacturer
R15FA3S-GSC3(HB) is a Winmate rugged panel PC for operator interfaces in industrial environments: a single device covers visualization and computing at the line, with no external PC and no additional video cabling.
Installation is provided as panel mount or on a VESA bracket and the operating system arrives with Android or Linux; storage is admitted from -30 to 60 °C and tolerated relative humidity reaches 95%.
At a glance
- CPU class: ARM Cortex-A9
- Processor: NXP i.MX6 Dual Core, 1.0GHz
- CPU frequency: 1 GHz
- CPU cores: 2
- Memory: 1GB (Default) 2GB (Optional) GB
Technical specifications
| CPU class | ARM Cortex-A9 |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| CPU frequency | 1 GHz |
| CPU cores | 2 |
| Memory | 1GB (Default) 2GB (Optional) GB2GB GB(optional) |
|---|
| Storage | eMMC: Onboard 16 GB (Default) eMMC: Onboard 32 GB (Optional)1× Micro SD Card SloteMMC: Onboard 32 GB(optional) |
|---|
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | Up to 399 standard cd/m²(default)1000+ sunlight cd/m²(optional) |
| Touchscreen | PCAP(default) |
| Contrast ratio | 2000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232 (M12 type)(Optional 422/485) |
| Audio | 2× Speaker |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 363.4 × 277.9 × 45.2 mm |
| Chassis material | alluminio |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | CEMIL-STD-810FCC |
|---|
| Operating systems | AndroidLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
