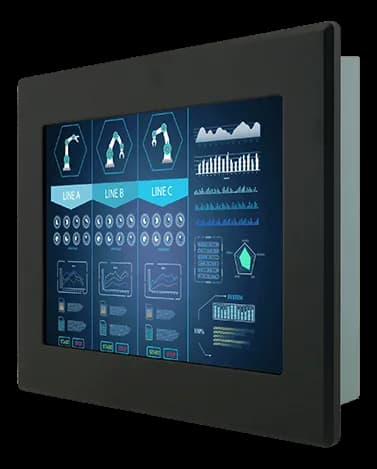

R12L600-IPM2WT12.1" 500 cd/m² monitor with IP65 front
- Manufacturer
R12L600-IPM2WT is a 12.1-inch Winmate industrial monitor for control panels, machine-side positions and supervision stations in the department.
The declared operating range runs from -20 to 60 °C, with storage allowed between -25~65 °C: a useful margin when the panel stays in unconditioned environments. The input is direct current, with a nominal voltage of 12 V or 24 V chosen at the time of order.
The panel reproduces 16.2 million colours.
At a glance
- Display size: 12.1 ″
- Resolution: 1024x768 XGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 1000:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 12.1 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)HDMI(1 x HDMI (Optional) · optional)DVI(1 x DVI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| Display colors | 16.2M Colors |
| Active area | 245.76 × 184.32 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | Audio line in (3.5mm)(optional)2× Speaker(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC 12/24 V (nominali a scelta) |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 324 × 274 × 43 mm |
| Cutout dimensions | 303 × 252 mm |
| Weight | 2.5 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
