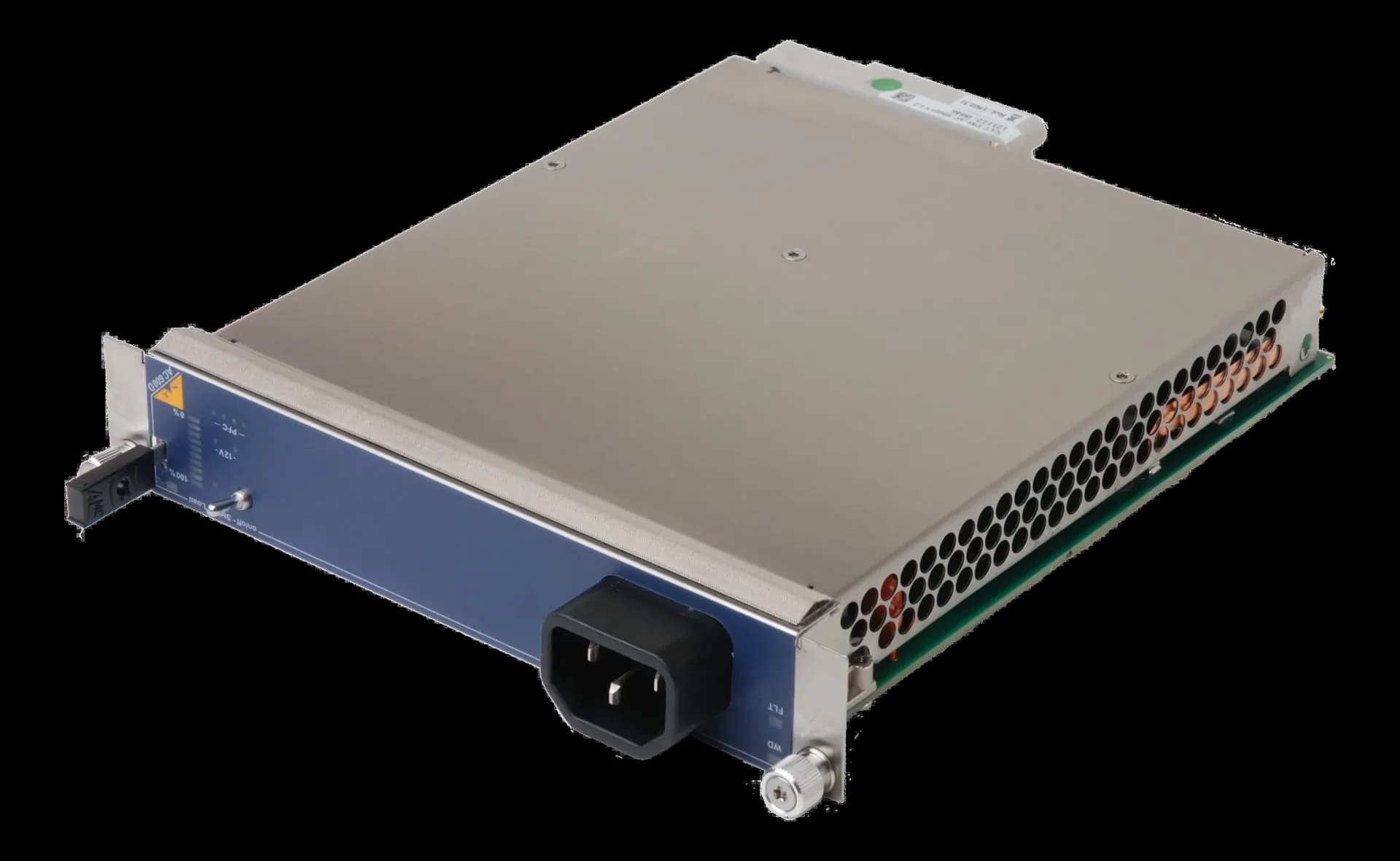

NAT-PM-AC10001000 W MicroTCA AC power module, hot-swap
- Manufacturer
NAT-PM-AC1000 is an AC/DC power module for MicroTCA systems, sized for chassis with high power demand; the declared form factor is full-size, single or double.
Isolation between input and output is declared at 3 kV and peak efficiency at 90%. The 12 V output runs at 12.4 V in primary mode and at 11.6 V in secondary mode. The module is hot-swappable and carries the optical load indicator and the status LED on the front panel.
At a glance
- FPGA / processing: Lattice MACHXO2
- Board function: Power
- Architecture standard: MTCA.4
- Form factor: Double full-size
- Power consumption: 1 W
Technical specifications
| FPGA / processing | Lattice MACHXO2 |
|---|
| Board function | Power |
|---|---|
| Architecture standard | MTCA.4 |
| Form factor | Double full-sizeSingle full-size |
| Hot-swap | sì |
| Power consumption | 1 W |
|---|
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -40–85 °C |
| MTBF | 204814 h |
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
