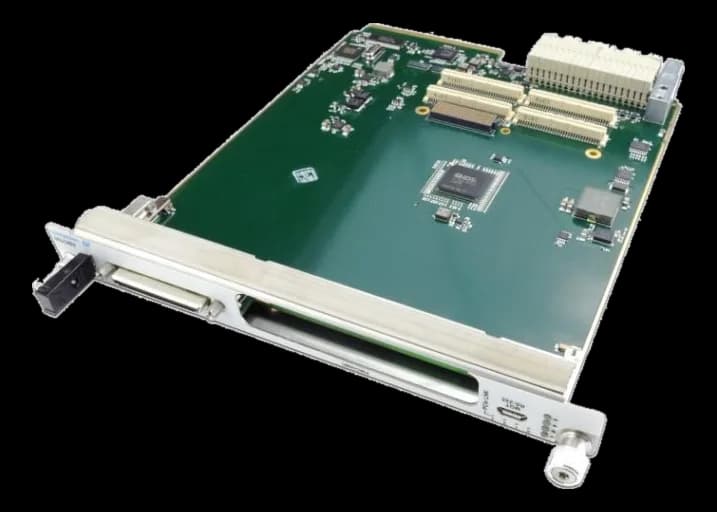

AMC105AMC carrier module for PMC and XMC mezzanine modules, IPMI 2.0
- Manufacturer
AMC105 is an AMC form factor carrier that makes PMC and XMC mezzanine modules usable inside a MicroTCA chassis, without redesigning the application I/O.
The module is declared AMC.1 and connects the XMC site and the AMC bus with four PCIe lanes, while the PMC site is served by a 64-bit PCI-X bus up to 133 MHz. The front panel carries a mini SCSI connector and activity and status LEDs; the board is designed for CE, FCC and UL certification where applicable.
At a glance
- Board function: Carrier
- Architecture standard: AMC.1
- Form factor: Double mid-size
Technical specifications
| Board function | Carrier |
|---|---|
| Architecture standard | AMC.1AMCMTCA.4 |
| Form factor | Double mid-size |
| Bus interface | Mini SCSI Type Connector |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Dimensions | 148.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
