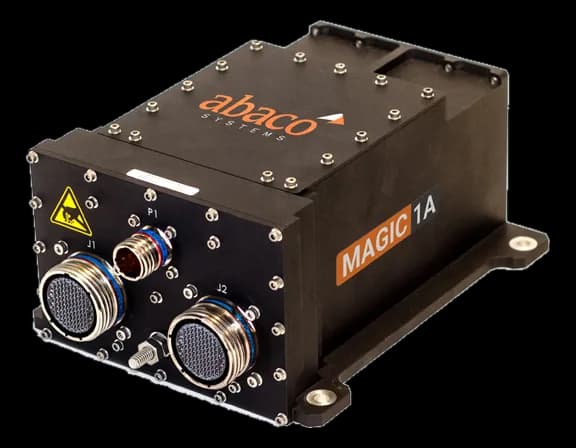

MAGIC1A3U VPX conduction-cooled mission computer with Intel Xeon
- Manufacturer
MAGIC1A is a mission computer built on the open VPX standard (VITA 46) in 3U Eurocard format, intended for airborne and vehicle platforms where the electronics must work without forced ventilation: heat is dissipated by conduction through the baseplate and the boards receive conformal coating.
Interfacing with the onboard systems includes ARINC 429, MIL-STD-1553, Ethernet and video outputs, while the declared environmental qualifications are MIL-STD-810G and MIL-STD-704. Software support covers Linux, Windows and VxWorks.
At a glance
- Processor: Intel Xeon E3-1505M, E3-1505L v6
- CPU class: Intel Xeon
- Memory: Up to 16 GB DDR4
- RAM type: DDR4
- Maximum RAM: 16 GB
Technical specifications
| Processor | Intel Xeon E3-1505M, E3-1505L v67th Gen Intel Xeon E3-1505M v6(optional)7th Gen Intel Xeon E3-1505L v6(optional) |
|---|---|
| CPU class | Intel Xeon |
| Memory | Up to 16 GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 16 GB |
| Storage | 64 GB SSD · Up to 8 TB\* Removable mass storage |
|---|
| Graphics | NVIDIA Pascal Quadro P2000 |
|---|---|
| GPU | Discrete |
| Ethernet ports | 1000BaseT |
|---|---|
| Serial interfaces | 2 |
| Video outputs | DVI, DP, VGA |
| Other I/O | 2x Gigabit Ethernet · 2x USB 2.0 · 2 x RS232/RS422/RS485 · 1 x Audio Stereo · 4 x MIL-STD-1553 · 7 x Tx + 7 x Rx ARINC 429\* · 6 x Avionics Discrete + Six GPIO · Or · 6x Gigabit Ethernet · 4x USB 2.0 · 2 x RS232/RS422/RS485 |
| Connectors | MIL-DTL-38999 |
| Form factor | 3U Eurocard |
|---|---|
| Architecture standard | VPX 3UVPX (VITA 46) |
| Cooling | Air-cooled (VITA class)Base-plate / cold-plate |
|---|---|
| Operating temperature | −40~65 |
| Storage temperature | -50–100 °C |
| Certifications | MIL-STD-810MIL-STD-704MIL-STD-461 |
|---|
| Operating systems | LinuxVxWorksWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
