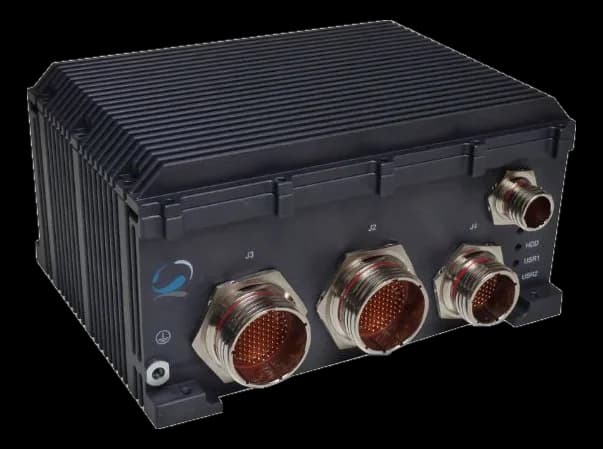

μONYX SFFRugged COM Express small form factor computer with PMC slot
- Manufacturer
μONYX SFF is a rugged computer on COM Express architecture, cooled by convection or conduction, used in manned and unmanned platforms where size, weight and dissipated power matter: MIL-DTL-38999 connectors and RTCA/DO-160G, MIL-STD-810G and MIL-STD-461G qualifications.
The processor is chosen from Core i7-6600U and i5-6300U, with memory up to 32 GB DDR4; the output is DVI-D, storage two 2.5" SATA SSDs plus an mSATA, and expansion comprises one PMC slot and two miniPCIe, one of which is AcroPack. GOMA configures it for the application.
At a glance
- Memory: Up to 32 GB DDR4
- RAM type: DDR4
- Maximum RAM: 32 GB
- Storage: 2x 2.5″ SATA SSD · 1x mSATA
- Architecture standard: COM Express
Technical specifications
| Processor | i5-6300U(optional)6th Gen Intel Core(optional)i7-6600U(optional) |
|---|
| Memory | Up to 32 GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 2x 2.5″ SATA SSD · 1x mSATA |
|---|
| Video outputs | DVI-D |
|---|---|
| Connectors | MIL-DTL-38999 |
| Architecture standard | COM Express |
|---|
| Expansion | 1 x PMC slot · 1x miniPCIe · 1x miniPCIe/AcroPack slots |
|---|
| Dimensions | 208 x 107 x 163 mm |
|---|---|
| Weight | 3 kg |
| Cooling | ConvectionConduction-cooled |
|---|---|
| Operating temperature | −40~71 |
| Storage temperature | -40–85 °C |
| Certifications | DO-160MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
