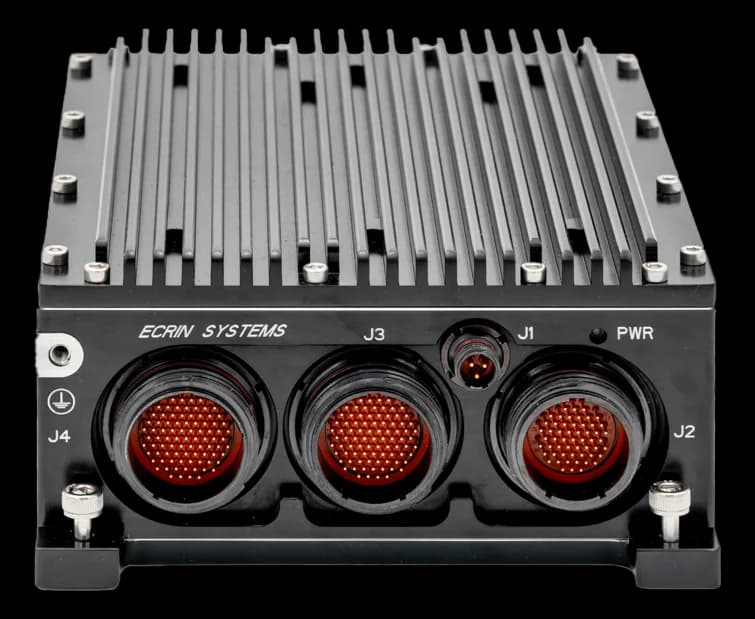

nano-ONYXThe smallest of the ONYX family, 1.9 kg
- Manufacturer
nano-ONYX is a rugged computer on COM Express architecture, cooled by convection or conduction, intended for demanding aerospace and military missions: MIL-DTL-38999 connectors and RTCA/DO-160G, MIL-STD-810G and MIL-STD-461G qualifications.
The processor is chosen from Core i7-8600U, i7-7600U and Atom E3950, E3940 or E3930, with memory up to 8 GB DDR4; the output is DVI, storage a 2.5" SATA SSD plus an M.2 SATA, and expansion comprises four AcroPack/miniPCIe slots. GOMA configures it for the application.
At a glance
- CPU class: Intel Atom
- Memory: Up to 8GB DDR4
- RAM type: DDR4
- Maximum RAM: 8 GB
- Storage: 1x 2.5″ SATA SSD · 1x M.2 SATA
Technical specifications
| Processor | Intel Atom E3950(optional)i7-7600U(optional)Intel Atom E3940(optional)Intel Atom E3930(optional)8th Gen Intel Core(optional)i7-8600U(optional)7th Gen Intel Core(optional) |
|---|---|
| CPU class | Intel Atom |
| Memory | Up to 8GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 8 GB |
| Storage | 1x 2.5″ SATA SSD · 1x M.2 SATA |
|---|
| Video outputs | DVI |
|---|---|
| Connectors | MIL-DTL-38999 |
| Architecture standard | COM Express |
|---|
| Expansion | 4x AcroPack / miniPCIe slots |
|---|
| Dimensions | 175 x 65 x 135 mm |
|---|---|
| Weight | 1.9 kg |
| Cooling | Conduction-cooledConvection |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | DO-160MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
