ONYXRugged COM Express computer for vetronics and avionics
- Manufacturer

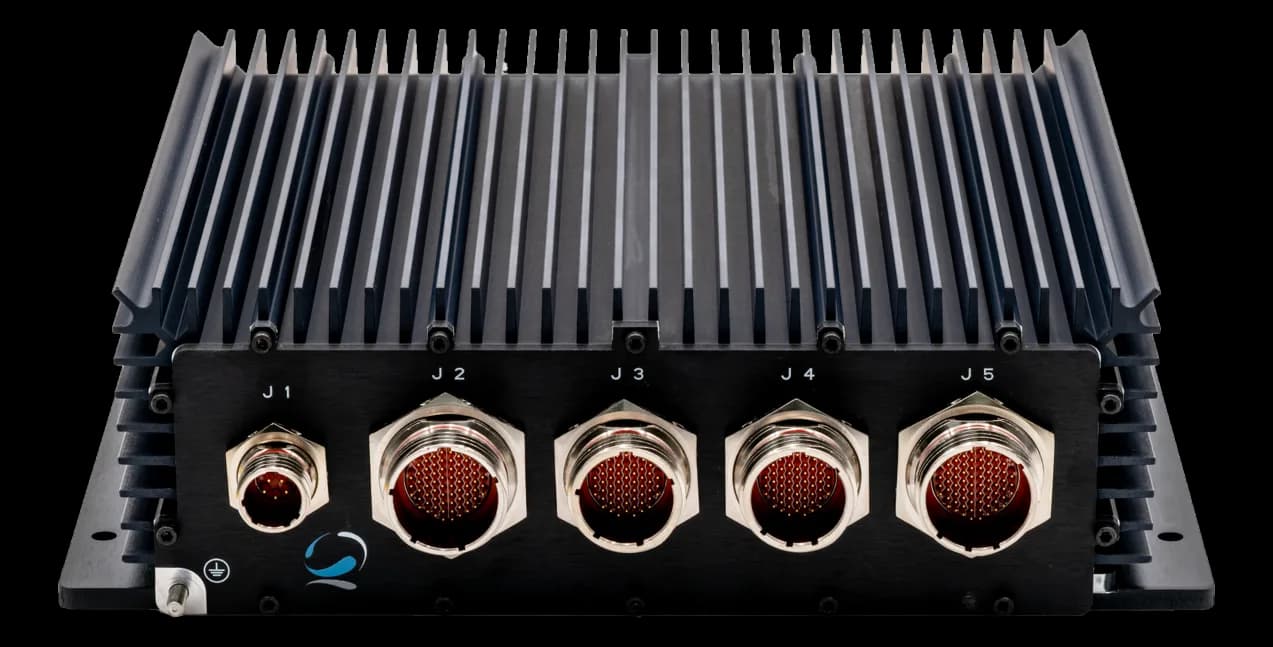

ONYX is a rugged computer on COM Express architecture, cooled by convection or conduction, used in vetronics and avionics applications: MIL-DTL-38999 connectors and RTCA/DO-160G, MIL-STD-810G and MIL-STD-461G qualifications.
The processor is chosen from Core i7-6822EQ and Xeon E3-1505L v5, with memory up to 32 GB DDR4; the video output is DVI-VGA, storage a 2.5" SATA SSD plus a CFAST, and expansion comprises one PMC slot and one mPCIe. GOMA configures it for the application.
At a glance
- CPU class: Intel Xeon
- Memory: Up to 32 GB DDR4
- RAM type: DDR4
- Maximum RAM: 32 GB
- Storage: 1x 2.5″ SATA SSD · 1x CFAST
Technical specifications
| Processor | 6th Gen Intel Core(optional)E3-1505L v5(optional)6th Gen Intel Xeon(optional)i7-6822EQ(optional) |
|---|---|
| CPU class | Intel Xeon |
| Memory | Up to 32 GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 1x 2.5″ SATA SSD · 1x CFAST |
|---|
| Video outputs | DVI-VGA |
|---|---|
| Connectors | MIL-DTL-38999 |
| Architecture standard | COM Express |
|---|
| Expansion | 1x PMC slot · 1x mPCIe slot |
|---|
| Dimensions | 270 x 88 x 250 mm |
|---|---|
| Weight | 7 kg |
| Cooling | ConvectionConduction-cooled |
|---|---|
| Operating temperature | −40~71 |
| Storage temperature | -40–85 °C |
| Certifications | DO-160MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
