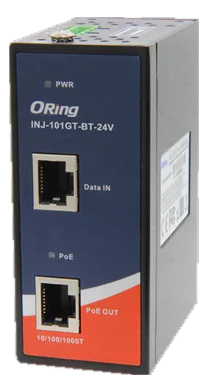

INJ-101GT-BT-24VIEEE 802.3bt PoE injector with output up to 90 W
- Manufacturer
INJ-101GT-BT-24V inserts power onto an Ethernet run already in place, to serve cameras, access points and terminals where no mains outlet reaches.
Available power depends on the applied voltage: 30 W with a 12 to 23.9 VDC input and 90 W from 24 to 57 VDC. The -40 to 75 °C operating range, the IP30 enclosure and DIN-rail or wall mounting suit it to field cabinets and outdoor camera points.
At a glance
- PoE power budget: 30–90 W
- Copper port speed: 10/100/1000 Gigabit
- Power input: 12–57 V
- Power consumption: 1.5 W
- Mounting: DIN Rail Mount
Technical specifications
| Device type | PoE injector |
|---|
| Copper ports (RJ45/M12) | 1 |
|---|---|
| PoE power budget | 30–90 W |
| PoE | IEEE 802.3af/at/bt |
| Copper port speed | 10/100/1000 Gigabit |
|---|---|
| Ethernet ports (in/out) | 1× ingresso dati (RJ-45) + 1× uscita dati e PoE (RJ-45) |
| Power input | 12–57 V |
|---|---|
| Power consumption | 1.5 W |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 41 × 95 × 70 mm |
| Weight | 0.346 kg |
| IP rating | IP30 |
|---|---|
| Operating temperature | -40–75 °C |
| Storage temperature | -40–85 °C |
| MTBF | 1834973 h |
| Certifications | UL |
|---|---|
| Electrical safety | EN 62368-1UL 61010-1 |
| EMC (emission/immunity) | EN 55035FCC Part 15BEN 55032CISPR 32 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
