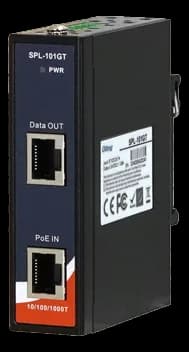

SPL-101GTGigabit PoE splitter with 24 VDC output
- Manufacturer
SPL-101GT closes the PoE link on the powered-device side: from the Ethernet run it derives a data line and a DC line for devices that do not embed PoE.
The input accepts 36 to 57 VDC from the RJ-45 port and returns 24 V on the terminal block, with an output power up to 21 W. DIN-rail or wall mounting and protections against short circuit and overload complete the cabinet installation.
At a glance
- Copper port speed: 10/100/1000 Gigabit
- Power input: 36–57 V
- Output power: 21 W
- Output voltages: 24 VDC ±5% / 0,9 A max su morsettiera a 4 poli
- Mounting: DIN Rail Mount
Technical specifications
| Device type | PoE splitter |
|---|
| Copper ports (RJ45/M12) | 1 |
|---|---|
| PoE | IEEE 802.3at |
| Copper port speed | 10/100/1000 Gigabit |
|---|---|
| Ethernet ports (in/out) | 1× ingresso dati e PoE (RJ-45) + 1× uscita dati (RJ-45) |
| Power input | 36–57 V |
|---|---|
| Output power | 21 W |
| Output voltages | 24 VDC ±5% / 0,9 A max su morsettiera a 4 poli |
| Mounting | DIN Rail MountWall Mount |
|---|---|
| Dimensions | 26.1 × 95 × 70 mm |
| Weight | 0.25 kg |
| IP rating | IP30 |
|---|---|
| Operating temperature | -20–70 °C |
| Storage temperature | -40–80 °C |
| Electrical safety | EN 60950-1 |
|---|---|
| EMC (emission/immunity) | IEC 61000-4-5 SurgeIEC 61000-4-4 EFTIEC 61000-4-3 RSIEC 61000-4-2 ESDFCC Part 15BIEC 61000-4-6 CSIEC 61000-4-8 PFMF |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
